Telematics Sub Antenna

  1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to GROUND TERMINAL REMOVAL OR INSTALLATION .
  2. Remove the grille ventilation assembly center. Ref. to AIR CONDITIONER>AIR VENT GRILLE>REMOVAL>CENTER GRILLE .
  3. Remove the audio assembly or navigation assembly. Ref. to ENTERTAINMENT & MONITORING>AUDIO>REMOVAL .
  4. Remove the cover LWR driver. Ref. to EXTERIOR/INTERIOR TRIM>INSTRUMENT PANEL LOWER COVER>REMOVAL .
  5. Remove the combination meter assembly. Ref. to INSTRUMENTATION/DRIVER INFO>COMBINATION METER>REMOVAL .
  6. Remove the telematics sub antenna.
    1. Disconnect the GPS antenna assembly connector.
    2. Attach a string to the telematics sub antenna connector and the GPS antenna assembly connector on the main body side.
      NOTE:
      • A string makes operation easier during installation.
      • The telematics sub antenna is integrated into the GPS antenna assembly cord.
    3. Remove the bolts, cord clips and clamps, and pull out the telematics sub antenna from the combination meter side.

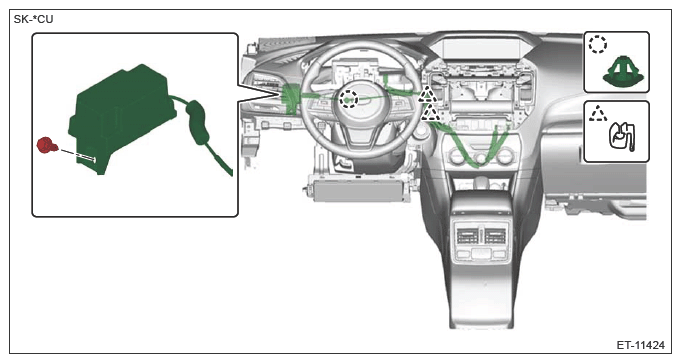

      G13870120Courtesy of SUBARU OF AMERICA, INC.
    4. After the telematics sub antenna has been pulled out, remove the string attached to the connector in step (2).
    NOTE: Leave the attached string inside the instrument panel, and use it during installation.
