Instrument Panel Lower Cover: Removal

CAUTION:

Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .
Be careful not to damage the airbag system harness when servicing the instrument panel. Damage may cause the system to malfunction.

Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to GROUND TERMINAL REMOVAL OR INSTALLATION .

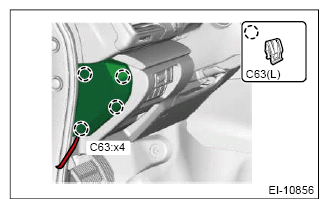

Remove the clips, and remove the cover assembly instrument panel side LH.

Courtesy of SUBARU OF AMERICA, INC.
NOTE:
- Use a plastic remover.
- If removing is difficult, remove the weather strip and remove it from the gap using a plastic remover.
Remove the cover LWR driver.

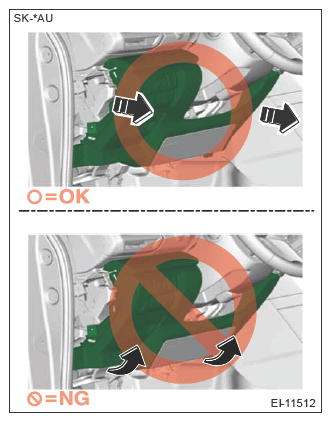

CAUTION: When removing the cover LWR driver, be sure to pull it toward you. If attempting to remove by turning it upward, the claws may be damaged.

Courtesy of SUBARU OF AMERICA, INC.

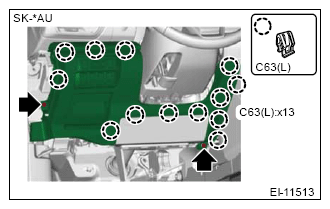

1. Remove the screws and release the clips and claws.
2. Disconnect each connector and remove the cover LWR driver.
Courtesy of SUBARU OF AMERICA, INC.
