GPS Antenna

  1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to GROUND TERMINAL REMOVAL OR INSTALLATION .
  2. Remove the grille ventilation assembly center. Ref. to AIR CONDITIONER>AIR VENT GRILLE>REMOVAL>CENTER GRILLE .
  3. Remove the audio assembly or navigation assembly. Ref. to ENTERTAINMENT & MONITORING>AUDIO>REMOVAL .
  4. Remove the cover LWR driver. Ref. to EXTERIOR/INTERIOR TRIM>INSTRUMENT PANEL LOWER COVER>REMOVAL .
  5. Remove the combination meter assembly. Ref. to INSTRUMENTATION/DRIVER INFO>COMBINATION METER>REMOVAL .
  6. Remove the GPS antenna assembly.
    1. Disconnect the connector, and remove the connector clip.
    2. Remove screws and remove the GPS antenna assembly.
      G13226548Courtesy of SUBARU OF AMERICA, INC.
    3. Tie a string to the GPS antenna assembly connector on the vehicle side.
      NOTE: A string makes operation easier during installation.
    4. Release the cord clamp, and pull out the GPS antenna assembly cord from the combination meter side.

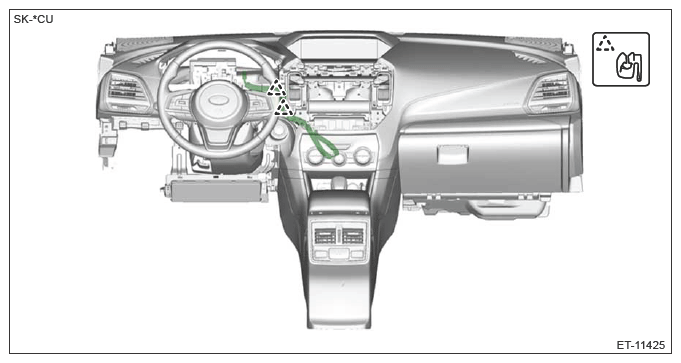

      G13870122Courtesy of SUBARU OF AMERICA, INC.
    5. When the GPS antenna assembly cord is pulled out, remove the string attached to the connector in step (3).
    NOTE: Leave the attached string inside the instrument panel, and use it during installation.
