Rear Gate Trim: Removal

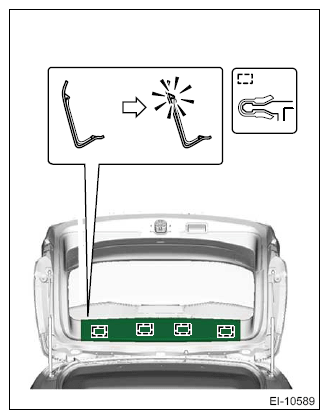

  1. Remove the trim panel - rear gate UPR.
    1. Remove the claws on the trim edge.
    2. Release the claws in the center of trim, and remove the trim panel - rear gate UPR.
    G13939410Courtesy of SUBARU OF AMERICA, INC.

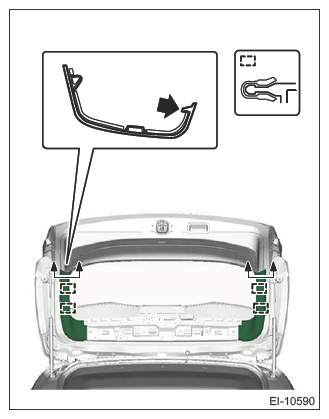

  2. Remove the trim panel - rear gate pillar side.
    1. Release the claws.
    2. Remove the claws on the bottom of trim, and remove the trim panel - rear gate pillar side.
    G13939411Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the light assembly rear gate. (Model with light assembly rear gate) Ref. to LIGHTING SYSTEM>REAR GATE LIGHT>REMOVAL .
  4. Remove the trim panel - rear gate LWR.
    1. Remove the clips on both ends.
    2. Release the clips, and remove the trim panel - rear gate LWR.
    G13939412Courtesy of SUBARU OF AMERICA, INC.
