Home >> Subaru >> 2021 >> Crosstrek Limited >> Repair and Diagnosis >> Accessories & Equipment >> Interior/Illumination Lights >> Lighting System >> Rear Gate Light >> Removal

Rear Gate Light: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the light assembly rear gate.
    CAUTION: When using a flat tip screwdriver, use an appropriate sized tool for the insertion opening, apply protective tape or cloth around the tool, and be careful not to cause damage.

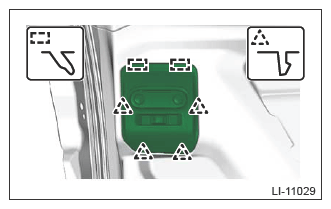

    1. Release the claws, and remove the light assembly rear gate.
      G13938588Courtesy of SUBARU OF AMERICA, INC.
    2. Disconnect the connector.
