Rear Gate Opener Button: Removal

NOTE: The button - opener rear gate of the model with keyless access with push button start is integrated with the rear lock button. For operation procedures, refer to "Rear Lock Button". Ref. to SECURITY AND LOCKS>REAR LOCK BUTTON>REMOVAL .

Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
NOTE: For the hybrid model, disconnect the battery negative terminal.
Remove the trim panel - rear gate. Ref. to EXTERIOR/INTERIOR TRIM>REAR GATE TRIM>REMOVAL .
Remove the garnish assembly - rear gate. Ref. to EXTERIOR/INTERIOR TRIM>REAR GATE GARNISH>REMOVAL .
Remove the button - opener rear gate.
CAUTION: When using a flat tip screwdriver, apply protective tape or cloth and be careful not to cause damage.

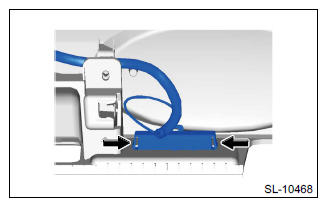

1. Remove the button - opener rear gate by pressing the lock portions on both sides.
Courtesy of SUBARU OF AMERICA, INC.
