Rear Wiper Motor: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
    NOTE: For the hybrid model, disconnect the battery negative terminal.
  2. Remove the trim panel - rear gate. Ref. to EXTERIOR/INTERIOR TRIM>REAR GATE TRIM>REMOVAL .
  3. Remove the arm assembly - rear wiper.
    1. Remove the cover - rear wiper arm.
    2. Remove the nut, and remove the arm assembly - rear wiper.
      G11246073Courtesy of SUBARU OF AMERICA, INC.

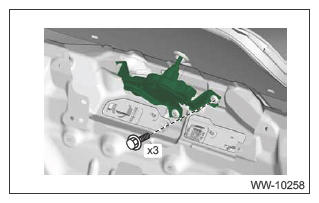

  4. Remove the motor assembly - rear wiper.
    1. Disconnect the harness connector of the motor assembly - rear wiper.
    2. Remove the bolts, and remove the motor assembly - rear wiper.
      G11246077Courtesy of SUBARU OF AMERICA, INC.
