Front Brake Pipe

  1. Perform the accumulator down drive. (Hybrid model) Ref. to BRAKE>BRAKE SYSTEM>OPERATION>ACCUMULATOR DOWN DRIVE .
  2. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
    NOTE: For the hybrid model, disconnect the battery negative terminal.
  3. Lift up the vehicle, and then remove the front wheels.
  4. Remove the crossmember support - rear RH. Ref. to FRONT SUSPENSION>CROSSMEMBER SUPPORT>REMOVAL .
  5. Remove the vacuum booster assembly. Ref. to BRAKE>BRAKE BOOSTER>REMOVAL .
  6. Remove the brake accumulator assembly. (Hybrid model) Ref. to BRAKE>BRAKE ACCUMULATOR ASSY>REMOVAL .
  7. Remove the brake pipe.
    1. Separate each brake pipe using a flare nut wrench.

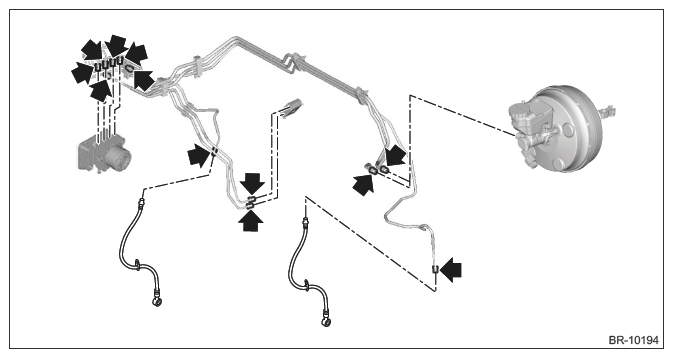

      • Impreza model
        G11255243Courtesy of SUBARU OF AMERICA, INC.

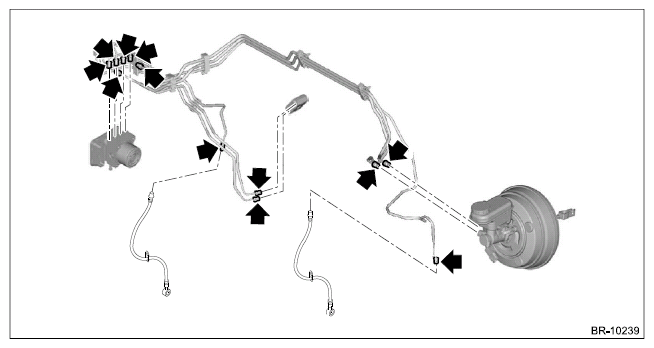

      • Crosstrek model (except for hybrid)
      G12392729Courtesy of SUBARU OF AMERICA, INC.

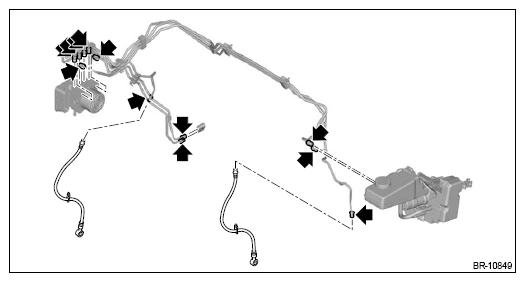

      • Crosstrek hybrid model
      G13232168Courtesy of SUBARU OF AMERICA, INC.
    2. Remove the brake pipe from the pipe clip.

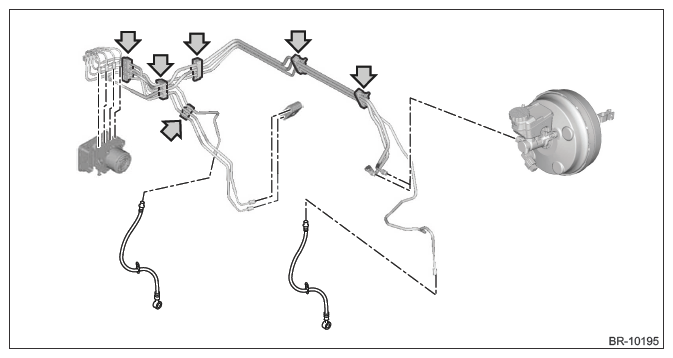

G11255244Courtesy of SUBARU OF AMERICA, INC.

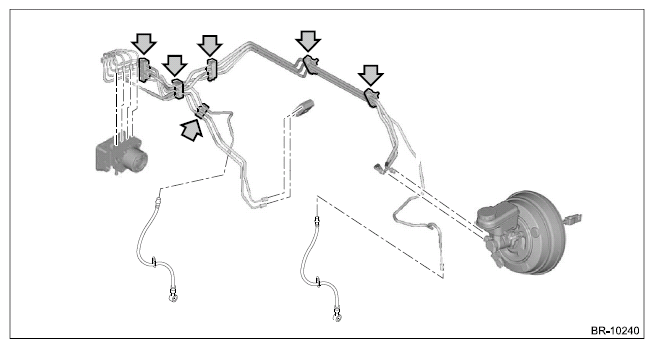

G12392731Courtesy of SUBARU OF AMERICA, INC.

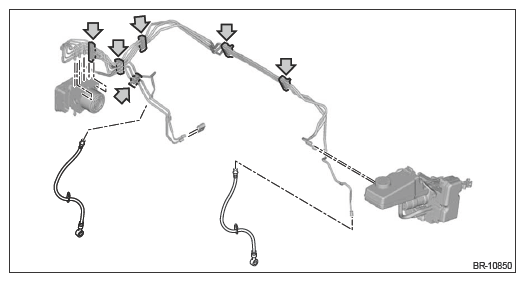

G13232171Courtesy of SUBARU OF AMERICA, INC.
