4 Door Model

CAUTION: Do not detach the antenna except when replacing it. Detaching unnecessarily will lead to insecure attachment of the antenna.
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the trim panel - trunk lid. Ref. to EXTERIOR/INTERIOR TRIM>TRUNK ROOM TRIM>REMOVAL .
  3. Remove the rear antenna assembly - exterior.
    1. Disconnect the connector.
    2. Release the clips, and remove the rear antenna assembly - exterior.

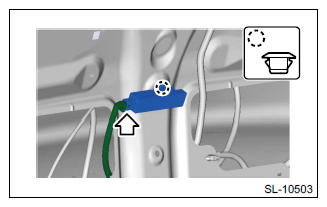

    G11246389Courtesy of SUBARU OF AMERICA, INC.
