Trunk Room Trim: Removal

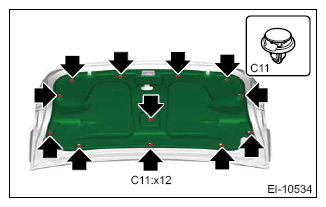

  1. Remove the clips, and remove the trim panel - trunk lid.
    G13939407Courtesy of SUBARU OF AMERICA, INC.
  2. Tilt the backrest assembly forward.
  3. Remove the mat - trunk.
  4. Remove the trim panel - trunk rear.
    1. Remove the clip.
    2. Release the claws, and remove the trim panel - trunk rear.
    G13939408Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the clips, and remove the trim panel - trunk side.
    G13939409Courtesy of SUBARU OF AMERICA, INC.
