Rear Regulator and Motor Assembly: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
    NOTE: For the hybrid model, disconnect the battery negative terminal.
  2. Remove the trim panel - rear door. Ref. to EXTERIOR/INTERIOR TRIM>DOOR TRIM>REMOVAL>REAR DOOR .
  3. Remove the rear sealing cover. Ref. to EXTERIOR BODY PANELS>SEALING COVER>REMOVAL>REAR SEALING COVER .
  4. Remove the glass assembly - rear door. Ref. to GLASS/WINDOW/MIRRORS>REAR DOOR GLASS>REMOVAL .
  5. Remove the regulator and motor assembly - rear.

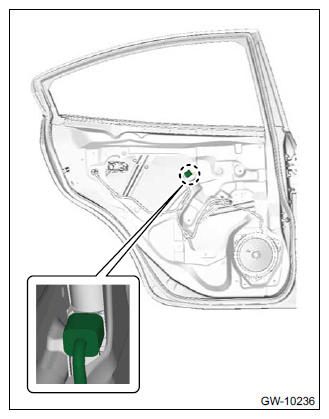

    1. Disconnect the connector of the motor - rear.
      G11246129Courtesy of SUBARU OF AMERICA, INC.

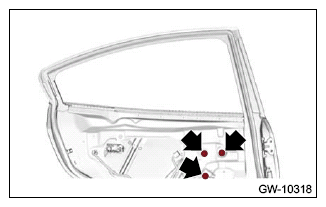

    2. Remove the bolts, and then remove the regulator and motor assembly - rear.
      G12398798Courtesy of SUBARU OF AMERICA, INC.
