Rear Seat: Disassembly

  1. Prior to starting work, check the following precautions. Ref. to SEATS>GENERAL DESCRIPTION>CAUTION .
  2. Remove the rear seat. Ref. to SEATS>REAR SEAT>REMOVAL .
  3. Remove the headrest assembly - rear backrest.
  4. Remove the armrest assembly - rear center. (Models with armrest)

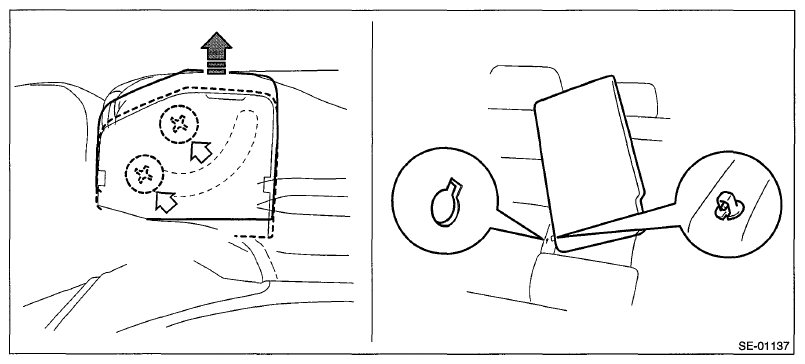

    1. Remove the cover - armrest by pulling it in the direction of the arrow (black).
    2. Remove the screws and remove the armrest assembly - rear center.
    G06653851Courtesy of SUBARU OF AMERICA, INC.
    NOTE: The armrest assembly - rear center cannot be detached unless pin positions on the RH side of the backrest assembly and on the center side of the armrest assembly - rear are aligned.
  5. Remove the knob - backrest. (Screw-in type)
    G11246253Courtesy of SUBARU OF AMERICA, INC.

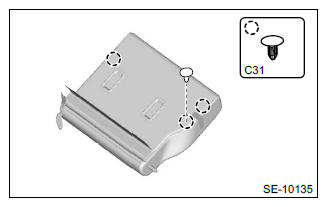

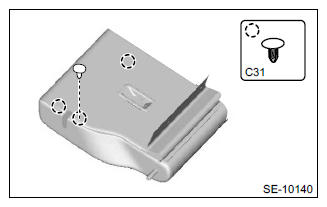

  6. Remove the clips on the backside of the cover COMPL - rear backrest.
    G11246254Courtesy of SUBARU OF AMERICA, INC.
    G11246255Courtesy of SUBARU OF AMERICA, INC.

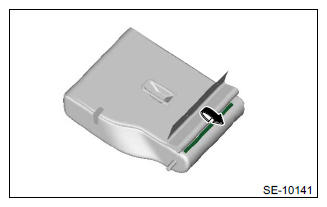

  7. Turn over the cover COMPL - rear backrest.

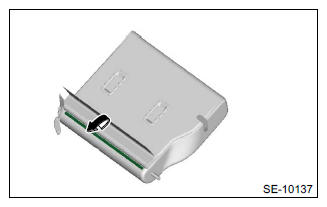

    1. Detach the plastic fastener at the bottom of backrest assembly and turn over the cover COMPL - rear backrest.
      G11246256Courtesy of SUBARU OF AMERICA, INC.
      G11246257Courtesy of SUBARU OF AMERICA, INC.

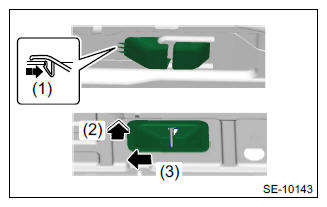

    2. Remove the tether anchor cover by inserting your hand from the inside of back board and pad. (5 door model)
      CAUTION: Pay attention to the burrs on the panel edge.
    G11246260Courtesy of SUBARU OF AMERICA, INC.
    NOTE: Pull up the pad and cover to remove the tether anchor cover.

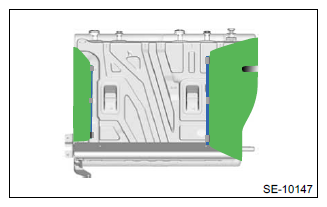

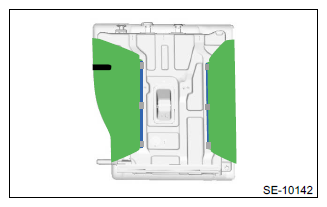

  8. Remove the plastic hooks on the back side of the backrest assembly.
    G11246258Courtesy of SUBARU OF AMERICA, INC.
    G11246259Courtesy of SUBARU OF AMERICA, INC.
  9. Remove the lock assembly - rear backrest rear.
    CAUTION: Pay attention to the burrs on the panel edge.
    G11246261Courtesy of SUBARU OF AMERICA, INC.

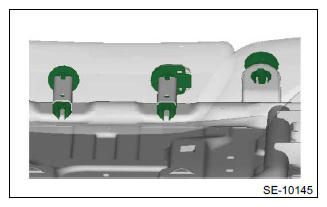

  10. Remove the bushing - headrest and the bushing - lock assembly.
    G11246262Courtesy of SUBARU OF AMERICA, INC.
    NOTE: Catch the tip of the bushing - headrest with pliers and push it outward from the inside of seat to remove it.

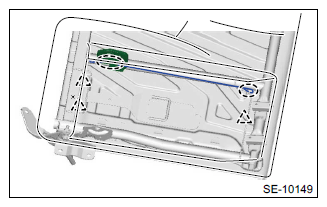

  11. For the backrest LH, remove the hog ring and wire clamp. (Impreza model with armrest)
    G11246263Courtesy of SUBARU OF AMERICA, INC.

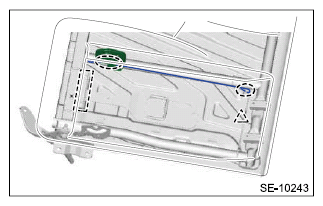

  12. For the backrest LH, remove the hog ring, wire clamp and J-fastener. (Crosstrek model with armrest)
    G12398946Courtesy of SUBARU OF AMERICA, INC.
  13. Remove the frame assembly - rear backrest.
  14. Remove the hog rings, then remove the cover COMPL - rear backrest.

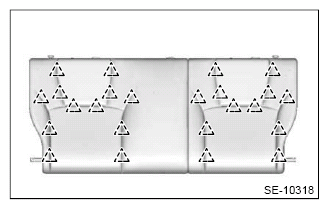

    • Impreza model
      G12398947Courtesy of SUBARU OF AMERICA, INC.

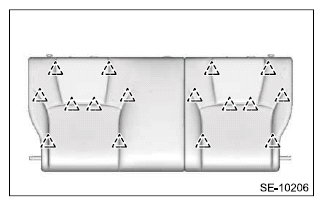

    • Crosstrek model
      G12398948Courtesy of SUBARU OF AMERICA, INC.

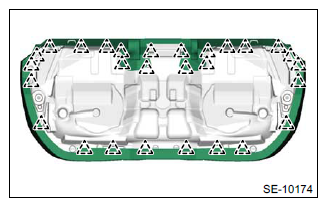

  15. Remove the hog rings on the back side of the rear seat cushion assembly.
    G11246265Courtesy of SUBARU OF AMERICA, INC.
  16. Remove the hog rings, then remove the cover - rear cushion.

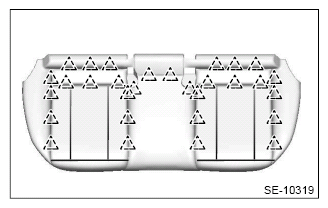

    • Impreza model
      G12398950Courtesy of SUBARU OF AMERICA, INC.

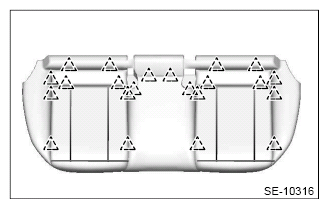

    • Crosstrek model
    G12398951Courtesy of SUBARU OF AMERICA, INC.
