Telematics Sub Antenna

  1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
    NOTE: For the hybrid model, disconnect the battery negative terminal.
  2. Remove the grille assembly - CTR ventilation. Ref. to AIR CONDITIONER (EXCEPT FOR HEV)>AIR VENT GRILLE>REMOVAL>CENTER GRILLE ASSEMBLY .
  3. Remove the audio assembly or navigation assembly. Ref. to ENTERTAINMENT & MONITORING>AUDIO>REMOVAL .
  4. Remove the cover assembly - instrument panel LWR driver. Ref. to EXTERIOR/INTERIOR TRIM>INSTRUMENT PANEL LOWER COVER>REMOVAL .
  5. Remove the combination meter assembly. Ref. to INSTRUMENTATION/DRIVER INFO>COMBINATION METER>REMOVAL .
  6. Remove the GPS antenna assembly. Ref. to ENTERTAINMENT & MONITORING>ANTENNA>REMOVAL>GPS ANTENNA .
    NOTE: Remove the antenna only. Do not pull the cord.
  7. Remove the grille assembly - ventilation LH. Ref. to AIR CONDITIONER (EXCEPT FOR HEV)>AIR VENT GRILLE>REMOVAL>SIDE GRILLE ASSEMBLY .
  8. Remove the telematics sub antenna.
    1. Attach a string to the telematics sub antenna connector and the GPS antenna assembly connector on the main body side.
      NOTE:
      • A string makes operation easier during installation.
      • The telematics sub antenna is integrated into the GPS antenna assembly cord.

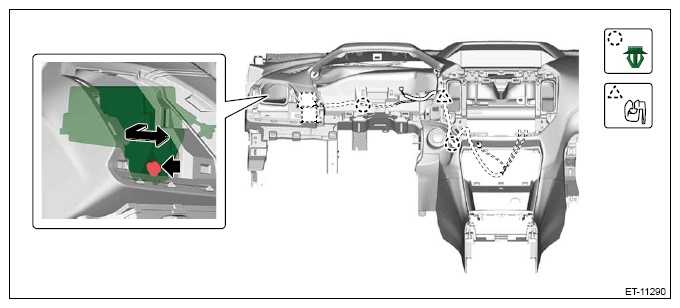

    2. Remove the bolts, cord clips and clamps, and pull out the telematics sub antenna from the mounting portion of the grille assembly - ventilation LH.
      G13606397Courtesy of SUBARU OF AMERICA, INC.
    3. After the telematics sub antenna has been pulled out, remove the string attached to the connector in step (1).
      NOTE: Leave the attached string inside the instrument panel, and use it during installation.
