GPS Antenna

  1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
    NOTE: For the hybrid model, disconnect the battery negative terminal.
  2. Remove the grille assembly - CTR ventilation. Ref. to AIR CONDITIONER (EXCEPT FOR HEV)>AIR VENT GRILLE>REMOVAL>CENTER GRILLE ASSEMBLY .
  3. Remove the audio assembly or navigation assembly. Ref. to ENTERTAINMENT & MONITORING>AUDIO>REMOVAL .
  4. Remove the cover assembly - instrument panel LWR driver. Ref. to EXTERIOR/INTERIOR TRIM>INSTRUMENT PANEL LOWER COVER>REMOVAL .
  5. Remove the combination meter assembly. Ref. to INSTRUMENTATION/DRIVER INFO>COMBINATION METER>REMOVAL .
  6. Remove the reinforcement - combination meter.
    1. Disconnect the connector.
    2. Detach the screws and release the claws, and remove the reinforcement - combination meter.

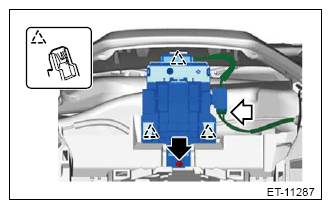

      G13606394Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the GPS antenna assembly.
    1. Release the claws.
    2. Remove screws and remove the GPS antenna assembly.

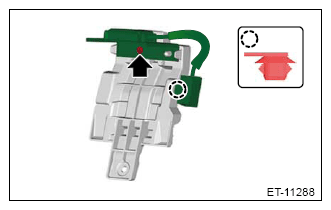

      G13606395Courtesy of SUBARU OF AMERICA, INC.
    3. Tie a string to the GPS antenna assembly connector on the main body side.
      NOTE:
      • A string makes operation easier during installation.
      • For models with telematics, GPS antenna assembly cord cannot be removed as a single unit because it is integrated with the telematics sub antenna.
    4. Remove the cord clip and clamp, and pull out the GPS antenna assembly cord from the combination meter side.

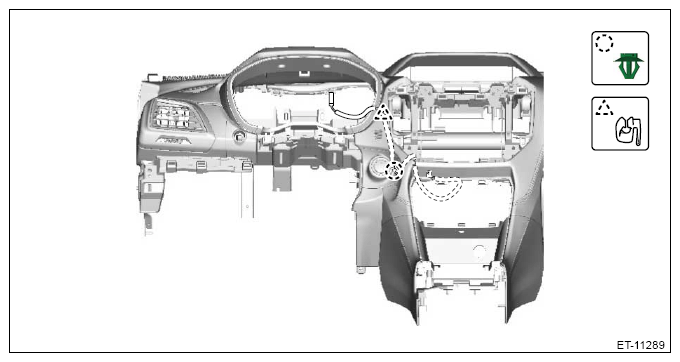

      G13606396Courtesy of SUBARU OF AMERICA, INC.
    5. When the GPS antenna assembly is pulled out, remove the string attached to the connector in step (3).
      NOTE: Leave the attached string inside the instrument panel, and use it during installation.
