Heater Core Sensor: Removal

CAUTION: Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .
  1. Disconnect the ground terminal from battery and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the cover assembly - instrument panel LWR driver. Ref. to EXTERIOR/INTERIOR TRIM>INSTRUMENT PANEL LOWER COVER>REMOVAL .
  3. Remove the knee airbag module. Ref. to AIRBAG SYSTEM>KNEE AIRBAG MODULE>REMOVAL .
  4. Remove the duct - foot driver. Ref. to AIR CONDITIONER (HEV)>HEATER DUCT>REMOVAL>FOOT .
  5. Remove the heater core sensor.

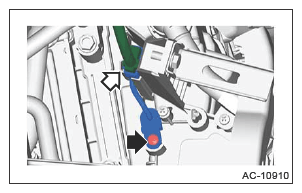

    1. Disconnect the connector.
    2. Remove the screw and detach the heater core sensor.
      G13234331Courtesy of SUBARU OF AMERICA, INC.
