Knee Airbag Module: Removal

CAUTION:
  • Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .
  • Do not allow harness and connectors to interfere or get tangled up with other parts.
  1. Turn the ignition switch to OFF.
  2. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
    NOTE: For the hybrid model, disconnect the battery negative terminal.
  3. Remove the cover assembly - instrument panel LWR driver. Ref. to EXTERIOR/INTERIOR TRIM>INSTRUMENT PANEL LOWER COVER>REMOVAL .
  4. Remove the knee airbag module.
    1. Disconnect the connector of knee airbag module. Ref. to AIRBAG SYSTEM>AIRBAG CONNECTOR>PROCEDURE>KNEE AIRBAG MODULE AND PASSENGER'S LAP SEAT BELT PRETENSIONER .
    2. Remove the data link connector.
    3. Remove the nuts, and remove the knee airbag module.

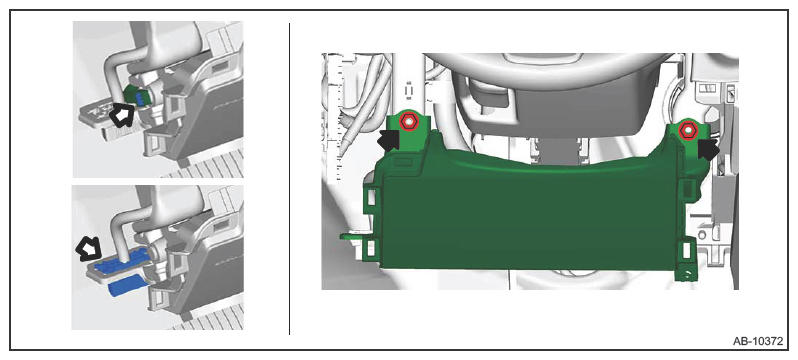

      G11245797Courtesy of SUBARU OF AMERICA, INC.

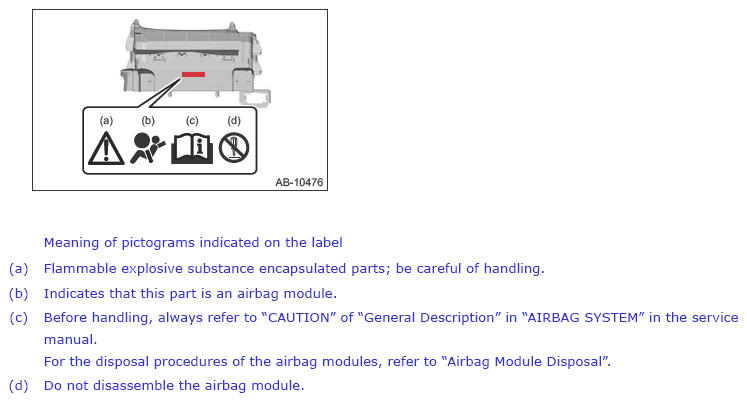

      G13938371Courtesy of SUBARU OF AMERICA, INC.
