Water Pipe RH

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
  2. Drain engine coolant. Ref. to COOLING (H4DO (EXCEPT FOR HEV))>ENGINE COOLANT>REPLACEMENT>DRAINING OF ENGINE COOLANT .
  3. Remove the front exhaust pipe. Ref. to EXHAUST (H4DO (EXCEPT FOR HEV))>FRONT EXHAUST PIPE>REMOVAL .
  4. Remove the crossmember support - rear RH. Ref. to FRONT SUSPENSION>CROSSMEMBER SUPPORT>REMOVAL .
  5. Disconnect the water hoses (rear side).
    G13224684Courtesy of SUBARU OF AMERICA, INC.

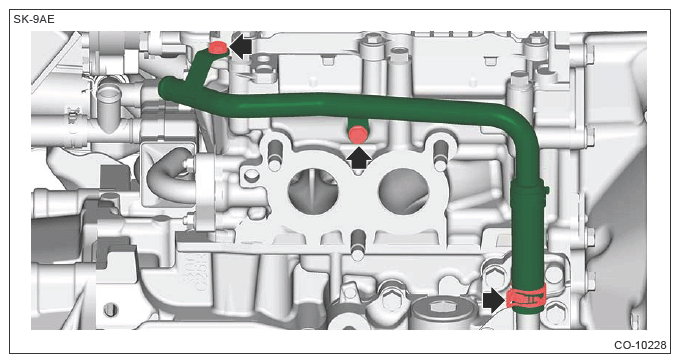

  6. Remove the bolts securing the water pipe RH, and remove the water hose (front side) and the water pipe RH as an assembly.
    G13224685Courtesy of SUBARU OF AMERICA, INC.
