Center Water Pipe

WARNING: This page is about a different variant/trim than selected.
NOTE: Center water pipe is installed on 2.5 L model only.
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
  2. Drain engine coolant. Ref. to COOLING (H4DO (EXCEPT FOR HEV))>ENGINE COOLANT>REPLACEMENT>DRAINING OF ENGINE COOLANT .
  3. Remove the front exhaust pipe. Ref. to EXHAUST (H4DO (EXCEPT FOR HEV))>FRONT EXHAUST PIPE>REMOVAL .

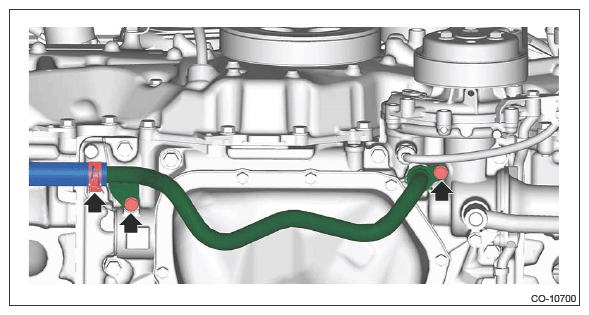

  4. Remove the center water pipe from the oil pan upper, and remove the center water pipe from the water hose.
    G13876540Courtesy of SUBARU OF AMERICA, INC.
