Thermostat Cover

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
  2. Drain engine coolant. Ref. to COOLING (H4DO (EXCEPT FOR HEV))>ENGINE COOLANT>REPLACEMENT>DRAINING OF ENGINE COOLANT .
  3. Remove the front exhaust pipe. Ref. to EXHAUST (H4DO (EXCEPT FOR HEV))>FRONT EXHAUST PIPE>REMOVAL .

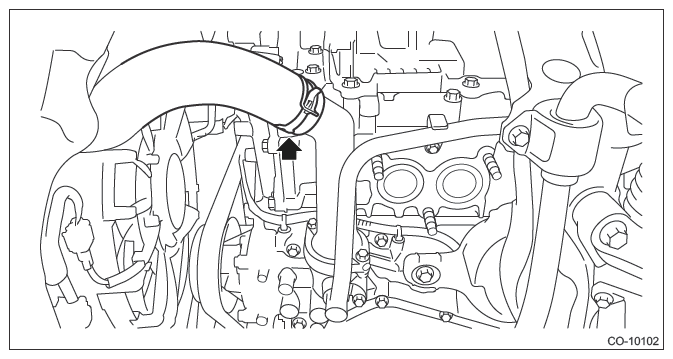

  4. Disconnect radiator outlet hose.
    G11253585Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the thermostat cover.
    G13601153Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the thermostat. (2.0 L model)
  7. Remove the gasket from thermostat. (2.0 L model)
  8. Remove the gasket from the oil pan upper. (2.5 L model)
