Thermostat (Water Tank Pipe Side)

WARNING: This page is about a different variant/trim than selected.
NOTE: Thermostat (water tank pipe side) is installed on CVT models only.
  1. Drain engine coolant. Ref. to COOLING (H4DO (EXCEPT FOR HEV))>ENGINE COOLANT>REPLACEMENT>DRAINING OF ENGINE COOLANT .
  2. Remove the clip from the air intake boot, and loosen the clamp.
    G11252776Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the air intake boot, and place it aside so that it does not interfere with the work.
    CAUTION: Be careful not to pull out the PCV hose.
    G11252777Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the EGR cooler. (2.5 L model) Ref. to EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES) (H4DO (EXCEPT FOR HEV))>EGR COOLER>REMOVAL>2.5 L MODEL .
  5. Disconnect the water hoses.

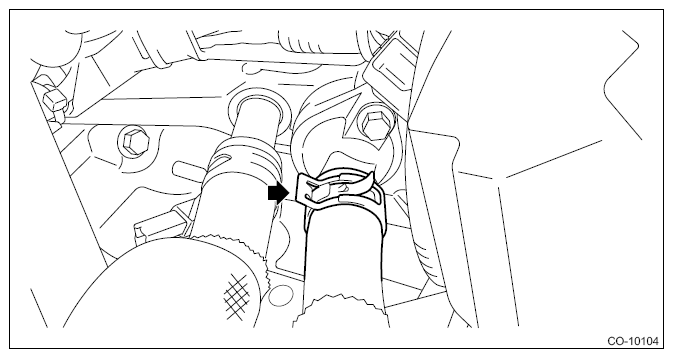

    • 2.0 L model
      G11253589Courtesy of SUBARU OF AMERICA, INC.

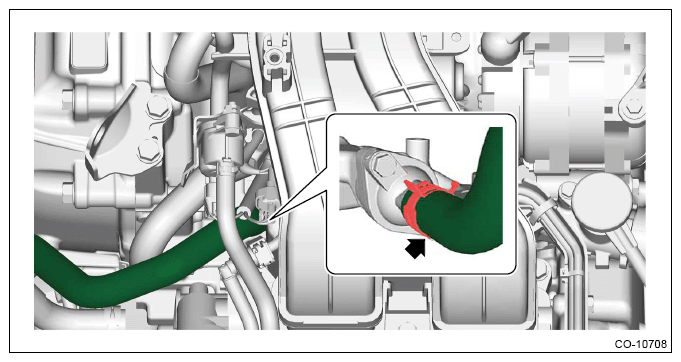

    • 2.5 L model
      G13876573Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the thermostat cover, and then remove the thermostat.

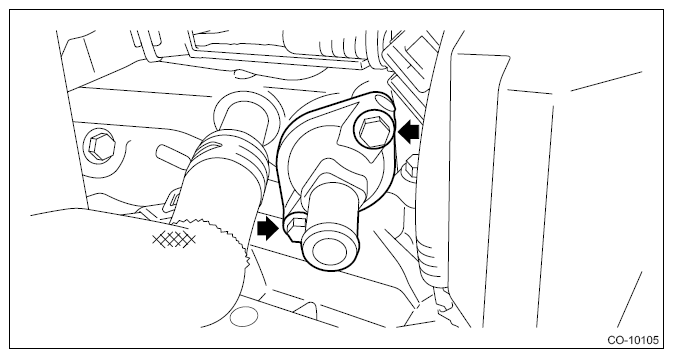

    • 2.0 L model
      G11253590Courtesy of SUBARU OF AMERICA, INC.

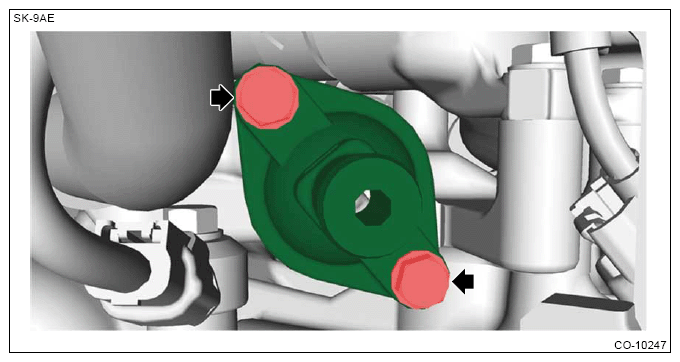

    • 2.5 L model
      G13224723Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the gasket from thermostat.
