Thermo Control Valve Assembly: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Thermo control valve assembly is installed only on 2.5 L model.

Release the fuel pressure. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO (EXCEPT FOR HEV))>FUEL>PROCEDURE>RELEASING OF FUEL PRESSURE .
Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
Drain engine coolant. Ref. to COOLING (H4DO (EXCEPT FOR HEV))>ENGINE COOLANT>REPLACEMENT>DRAINING OF ENGINE COOLANT .
Remove the high-pressure fuel delivery pipe assembly. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO (EXCEPT FOR HEV))>HIGH PRESSURE FUEL DELIVERY PIPE>REMOVAL>HIGH-PRESSURE FUEL DELIVERY PIPE ASSEMBLY .

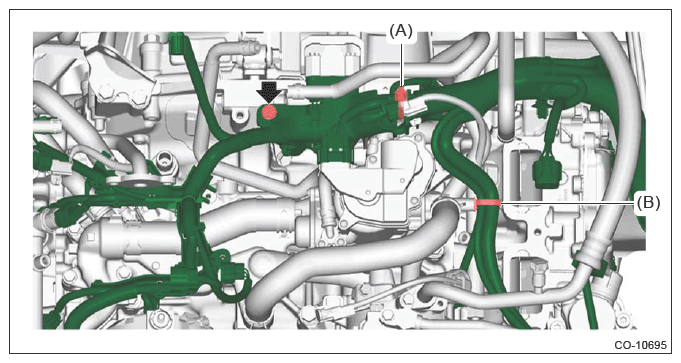

Remove the bolt securing the engine ground and the harness case and remove the clip (A) and clip (B).

Courtesy of SUBARU OF AMERICA, INC.

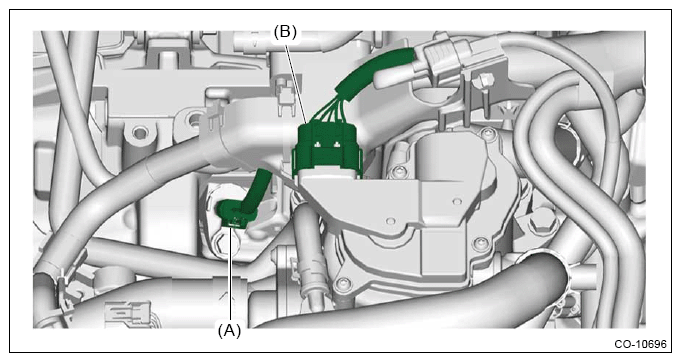

Remove the connector (A) and connector (B).

Courtesy of SUBARU OF AMERICA, INC.

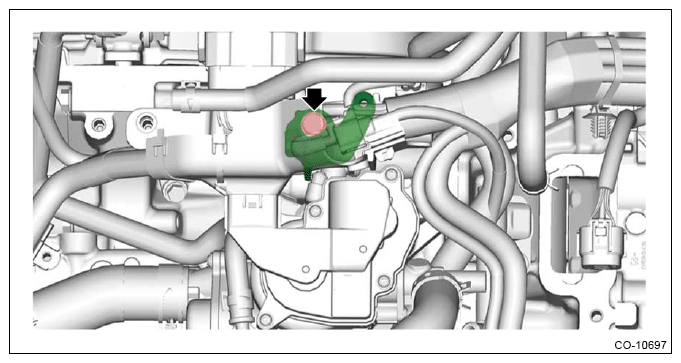

Remove the engine wiring harness stay.

Courtesy of SUBARU OF AMERICA, INC.
When thermo control valve assembly is replaced
Remove the bolts that hold the thermo control valve assembly and disconnect the water hose (A), water hose (B), water hose (C) and preheater hose (D) to remove the thermo control valve assembly.

Courtesy of SUBARU OF AMERICA, INC.

When thermo control valve assembly is not replaced

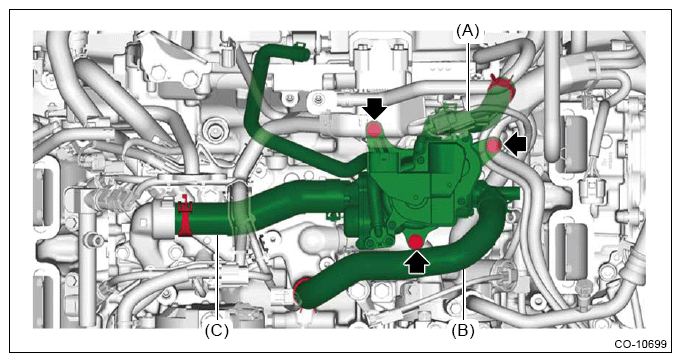

Remove the bolts securing the thermo control valve assembly and disconnect the water hose (A), water hose (B) and water hose (C), and remove them as a unit.

CAUTION: Water hoses should not be disconnected unless the thermo control valve assembly is replaced. This may cause damage to the thermo control valve assembly.

Courtesy of SUBARU OF AMERICA, INC.

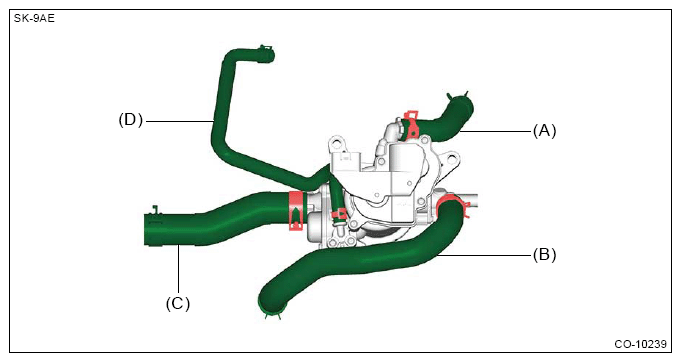

Disconnect the water hose (A), water hose (B), water hose (C) and preheater hose (D) from the thermo control valve assembly.

NOTE:

Remove if necessary.
To avoid excessive load to the thermo control valve assembly during removal, cut through the hoses.

Courtesy of SUBARU OF AMERICA, INC.
