Radiator Fan and Fan Motor Assembly: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the V-belt covers.
    G12391348Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the under cover - front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>REMOVAL .

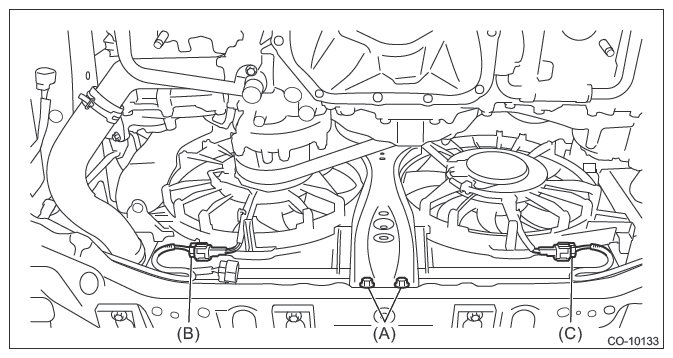

  4. Remove the lower side bolts (A) securing the radiator upper frame.
  5. Disconnect main fan motor connector (B) and sub fan motor connector (C).
    G11253607Courtesy of SUBARU OF AMERICA, INC.

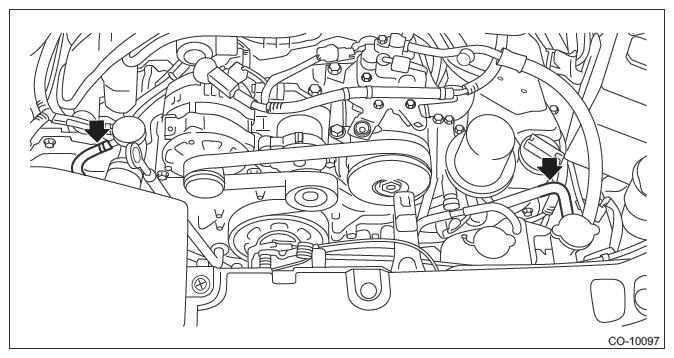

  6. Disconnect the over flow hose.
    G11253608Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the reservoir tank. Ref. to COOLING (H4DO (EXCEPT FOR HEV))>RESERVOIR TANK>REMOVAL .
  8. Remove the air intake duct. Ref. to INTAKE (INDUCTION) (H4DO (EXCEPT FOR HEV))>AIR INTAKE DUCT>REMOVAL .
  9. Remove the front bumper. Ref. to EXTERIOR/INTERIOR TRIM>FRONT BUMPER>REMOVAL .

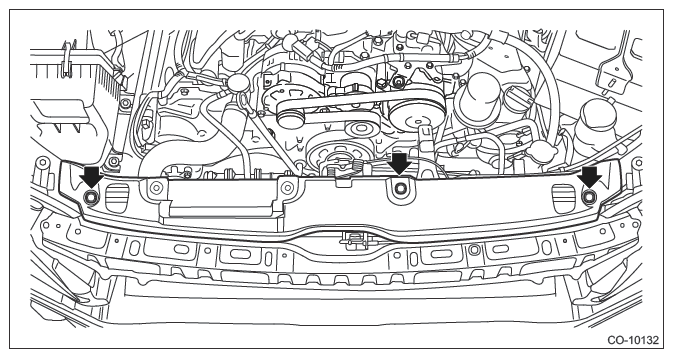

  10. Remove the cover UPR - front.
    G11253597Courtesy of SUBARU OF AMERICA, INC.
  11. Remove the bracket - bumper UPR.
    G11253598Courtesy of SUBARU OF AMERICA, INC.
  12. Remove the front hood lock assembly. Ref. to SECURITY AND LOCKS>FRONT HOOD LOCK ASSEMBLY>REMOVAL .
  13. Disconnect the connector from the horn, and remove the clip.
    • Impreza model
      G11253599Courtesy of SUBARU OF AMERICA, INC.

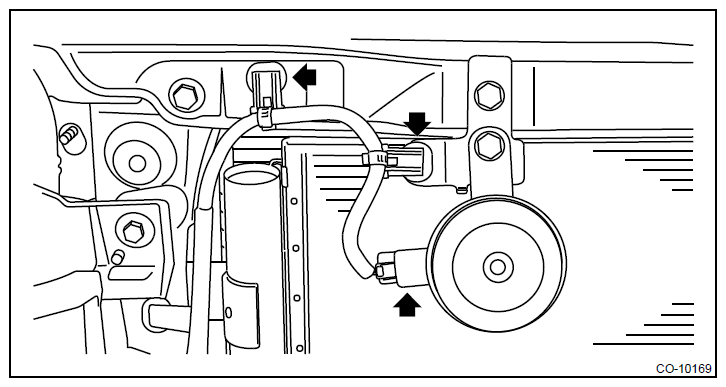

    • Crosstrek model
      G12395855Courtesy of SUBARU OF AMERICA, INC.

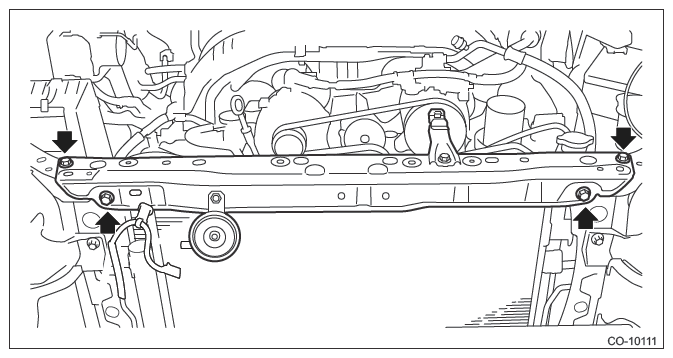

  14. Remove the upper side bolts securing the radiator upper frame, and remove the radiator upper frame.
    G11253601Courtesy of SUBARU OF AMERICA, INC.
  15. Remove the radiator upper cushion.

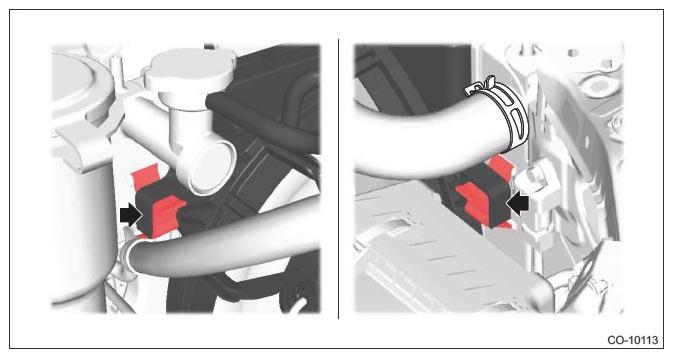

  16. Disengage the claws and remove the radiator fan and fan motor assembly.
    G11253613Courtesy of SUBARU OF AMERICA, INC.
