Reservoir Tank: Removal

WARNING: This page is about a different variant/trim than selected.

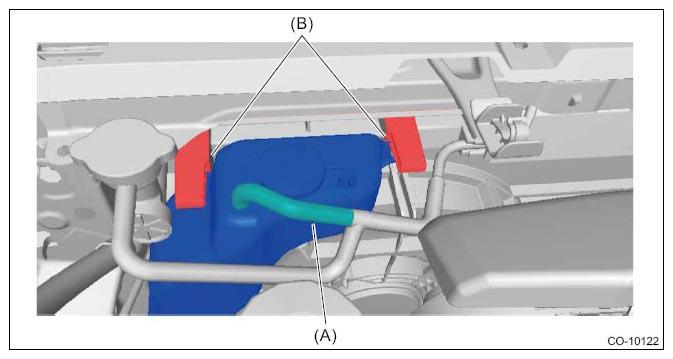

  1. Pull out the over flow hose (A) from the reservoir tank.
  2. Disengage the claw (B) and remove the reservoir tank.
    G11253624Courtesy of SUBARU OF AMERICA, INC.
