Engine Cooling System

• 2.0 L model

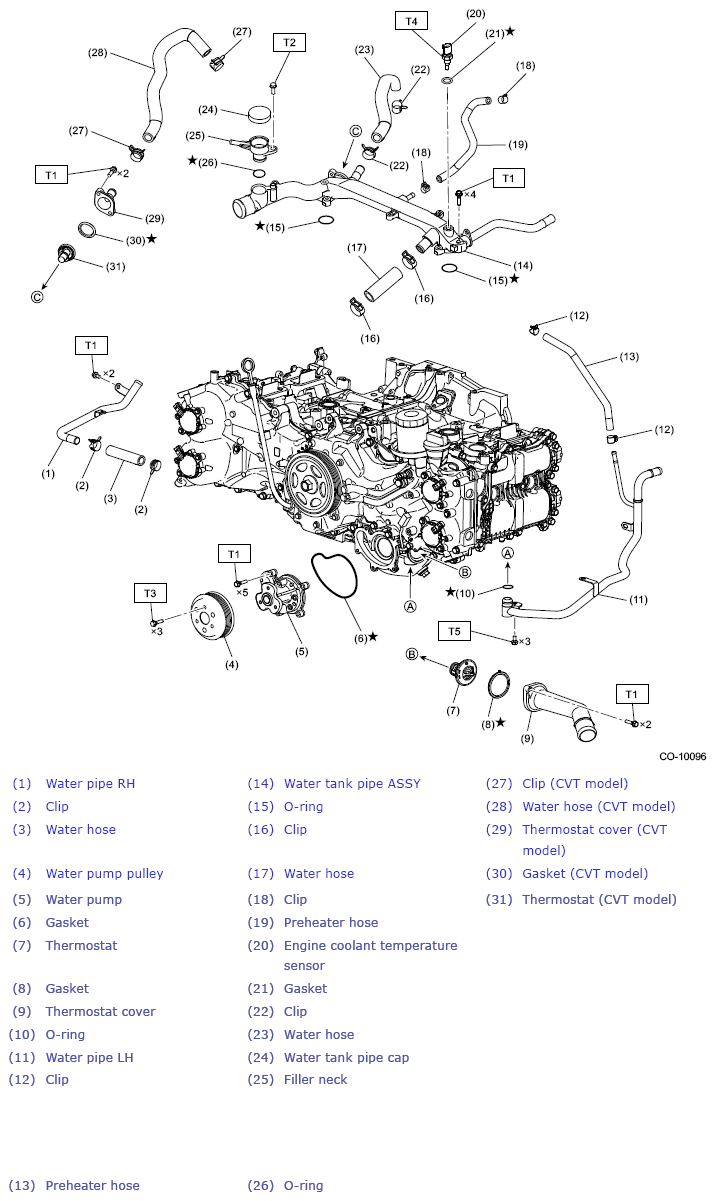

  Fig 1: Engine Cooling System Components Location (2.0 L Model)

  Courtesy of SUBARU OF AMERICA, INC.

  Tightening torque: N.m (kgf-m, ft-lb)

  T1: 6.4 (0.7, 4.7)

  T2: 7 (0.7, 5.2)

  T3: 14 (1.4, 10.3)

  T4: 16 (1.6, 11.8)

  TS:  Ref. to COOLING (H4DO (EXCEPT FOR HEV))>WATER PIPE>INSTALLATION>WATER PIPE LH .

• 2.5 L model

Fig 2: Engine Cooling System Components Location (2.5 L Model)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.4 (0.7, 4.7)

T2: 7 (0.7, 5.2)

T3: 8.5 (0.9, 6.3)

T4: 14 (1.4, 10.3)

T5: 16 (1.6, 11.8)

T6: 18 (1.8, 13.3)

T7:  Ref. to COOLING (H4DO (EXCEPT FOR HEV))>WATER PIPE>INSTALLATION>WATER PIPE LH .
