Section 2 (HVAC System (Heater, Ventilator And A/C) (Except For HEV)): Condenser: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Using the refrigerant recovery system, discharge refrigerant. Ref. to AIR CONDITIONER (EXCEPT FOR HEV)>REFRIGERANT RECOVERY PROCEDURE>PROCEDURE .
  2. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
  3. Remove the air intake duct. Ref. to INTAKE (INDUCTION) (H4DO (EXCEPT FOR HEV))>AIR INTAKE DUCT>REMOVAL .
  4. Remove the lock assembly - front hood. Ref. to SECURITY AND LOCKS>FRONT HOOD LOCK ASSEMBLY>REMOVAL .
  5. Remove the bumper face - front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT BUMPER>REMOVAL .
  6. Remove the bracket - bumper UPR and radiator upper frame. Ref. to COOLING (H4DO (EXCEPT FOR HEV))> RADIATOR> REMOVAL .

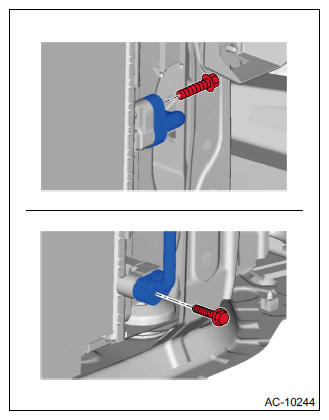

  7. Detach the hose - pressure discharge and the pipe - evaporator cooling.
    1. Remove the bolts and remove the hose - pressure discharge.
    2. Remove the bolt, and detach the pipe - evaporator cooling.
      CAUTION: Seal the disconnected hose, pipe and engaging part of condenser assembly with a plug or vinyl tape to prevent foreign matter from entering.
      G11245678Courtesy of SUBARU OF AMERICA, INC.

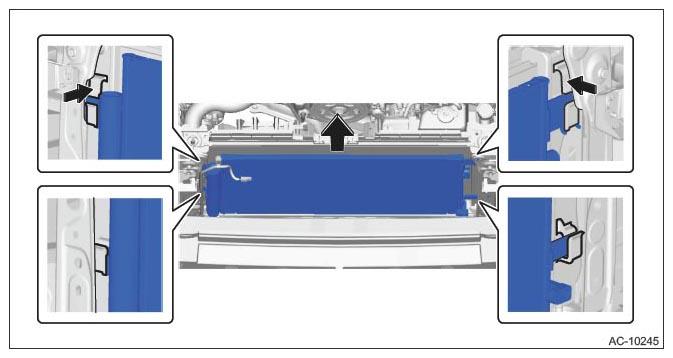

  8. Remove the condenser assembly - air conditioner.
    1. Release the hook and remove the guide.
    2. Remove the condenser assembly - air conditioner as shown in the figure.
      CAUTION: Be careful not to damage the condenser and radiator fin. If a damaged fin is found, repair it using a thin screwdriver.
      G11253603Courtesy of SUBARU OF AMERICA, INC.
