Driver's Side

WARNING: This page is about a different variant/trim than selected.
CAUTION:
  • Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .
  • If reusing the motor - actuator mix, perform the following procedures to prevent incorrect installation.
    1. While the part is installed to the vehicle, turn the temperature control dial to the MAX COOL position.
    2. Wait for 30 seconds in the condition 1, and remove the motor - actuator mix.
  1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the cover assembly - instrument panel LWR driver. Ref. to EXTERIOR/INTERIOR TRIM>INSTRUMENT PANEL LOWER COVER> REMOVAL .
  3. Remove the knee airbag module. Ref. to AIRBAG SYSTEM>KNEE AIRBAG MODULE>REMOVAL .
  4. Remove the motor - actuator mix. Ref. to EXTERIOR/INTERIOR TRIM>GLOVE BOX>REMOVAL .
    1. Disconnect the connector.
    2. Remove the screws and detach the motor - actuator mix.

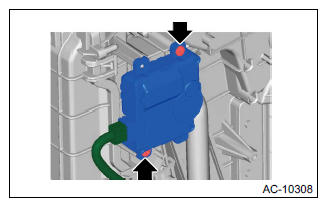

G11245714Courtesy of SUBARU OF AMERICA, INC.
