PCV Valve: Removal

WARNING: This page is about a different variant/trim than selected.
CAUTION: Do not remove unless the PCV valve is broken.
  1. Remove the clip from the air intake boot, and loosen the clamp.
    G11252776Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the air intake boot, and place it aside so that it does not interfere with the work.
    CAUTION: Be careful not to pull out the PCV hose.
    G11252777Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the PCV hose No. 1. Ref. to EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES) (H4DO (EXCEPT FOR HEV))>PCV HOSE>REMOVAL>PCV HOSE NO. 1 .
  4. Remove the PCV valve from the cylinder block RH.

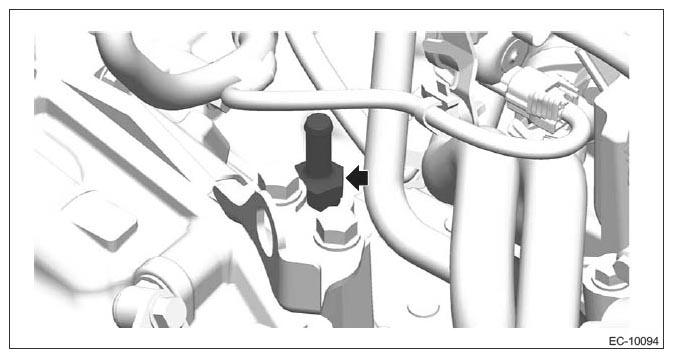

    • 2.0 L model
      G11253078Courtesy of SUBARU OF AMERICA, INC.

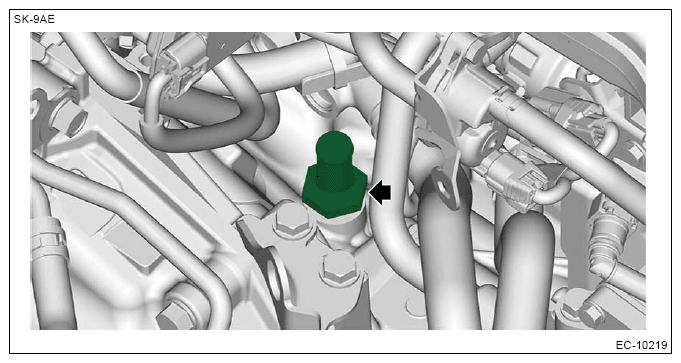

    • 2.5 L model
      G13224185Courtesy of SUBARU OF AMERICA, INC.
  5. Remove liquid gasket from the PCV valve and the mating surface of the cylinder block RH.
