PCV Connector: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
  2. Drain engine coolant. Ref. to COOLING (H4DO (EXCEPT FOR HEV))>ENGINE COOLANT>REPLACEMENT>DRAINING OF ENGINE COOLANT .
  3. Remove the A/C compressor. Ref. to AIR CONDITIONER (EXCEPT FOR HEV)>COMPRESSOR>REMOVAL .
    CAUTION: Do not bend the pipe portion of the hose - pressure discharge and the hose - pressure suction.
    NOTE: This operation procedure would be possible by simply moving aside the A/C compressor to the position that it does not interfere with the work. In that case, it is not necessary to disconnect the hose - pressure discharge and the hose - pressure suction from the A/C compressor.
  4. Disconnect the water hose (A) and PCV hose No. 2 (B) from the PCV connector, and remove the PCV connector.

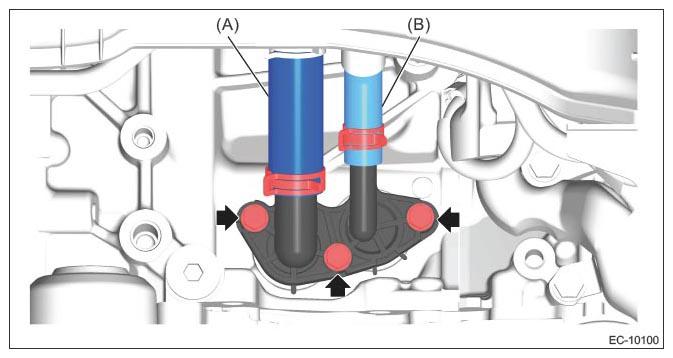

    • 2.0 L model
      G11253071Courtesy of SUBARU OF AMERICA, INC.

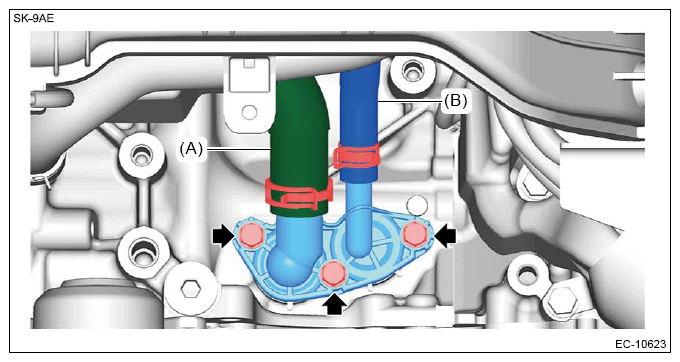

    • 2.5 L model
    G13875819Courtesy of SUBARU OF AMERICA, INC.
