Transfer Driven Gear: Installation

WARNING: This page is about a different variant/trim than selected.

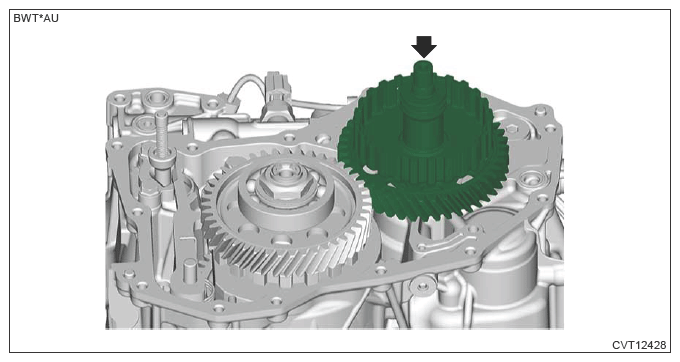

  1. Install the transfer driven gear.
    G13936110Courtesy of SUBARU OF AMERICA, INC.
  2. Install the transfer clutch. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 CROSSTREK)>TRANSFER CLUTCH>INSTALLATION .
