Reduction Drive Gear: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the transmission case. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 CROSSTREK)>TRANSMISSION CASE>REMOVAL .

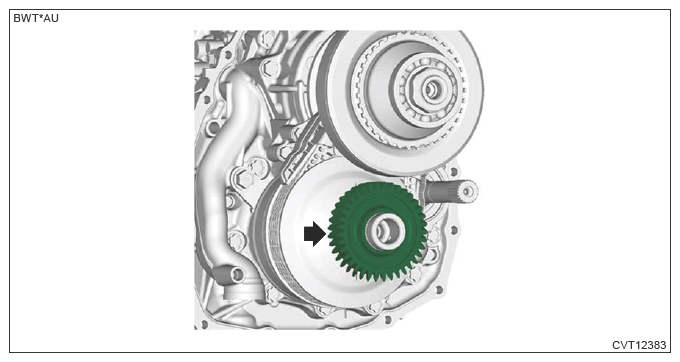

  2. Remove the reduction drive gear.
G13936195Courtesy of SUBARU OF AMERICA, INC.
