Before Overhaul

WARNING: This page is about a different variant/trim than selected.
  1. Remove the torque converter. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 CROSSTREK)>TORQUE CONVERTER>REMOVAL .
  2. Remove the air breather hose. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 CROSSTREK)>AIR BREATHER HOSE>REMOVAL .

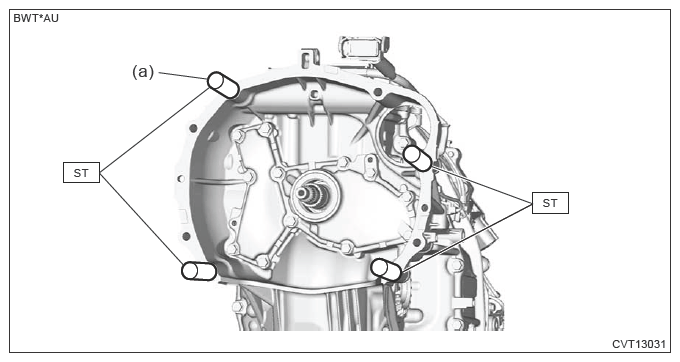

  3. Attach the ST.
    NOTE:

    When attaching the ST to the (a) positions, spacers or similar of 2.0 mm (0.08 in) or more in thickness are necessary.

    Preparation tool:

    ST: STAND ASSY (18632AA000)

    G13936065Courtesy of SUBARU OF AMERICA, INC.
  4. Place the transmission body.
NOTE:

Prepare a container for draining of oil, because CVTF remaining inside the transmission body may flow out from the input shaft portion.
