Torque Converter: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the transmission body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 CROSSTREK)>TRANSMISSION ASSEMBLY>REMOVAL .

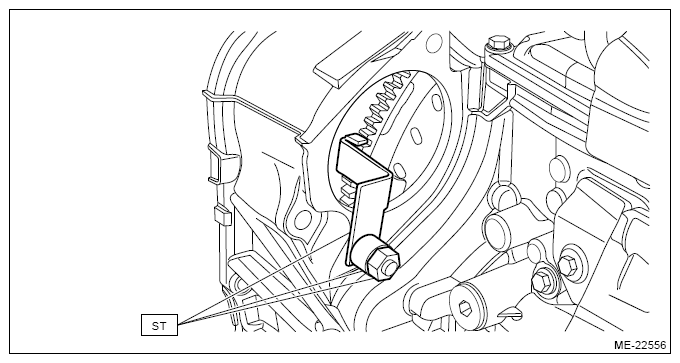

  2. Remove the ST.
    G13600625Courtesy of SUBARU OF AMERICA, INC.
  3. Pull out the torque converter horizontally.
    CAUTION:

    Be careful not to scratch the inside of engaging parts.

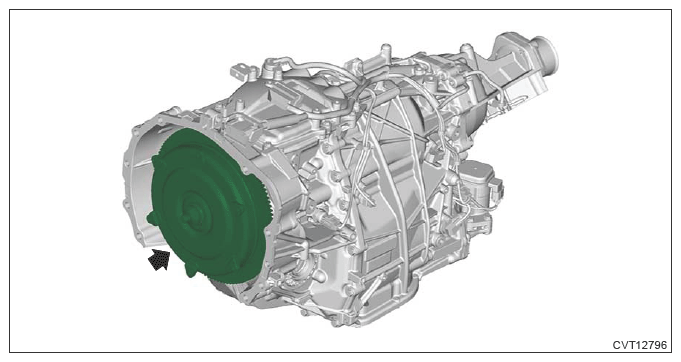

    • 2.0 L model
      G13603290Courtesy of SUBARU OF AMERICA, INC.

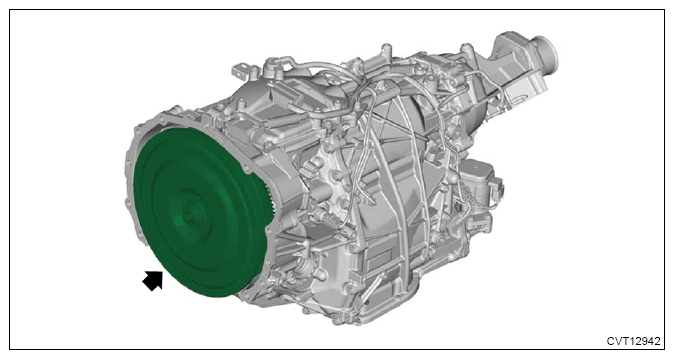

    • 2.5 L model
    G13936024Courtesy of SUBARU OF AMERICA, INC.

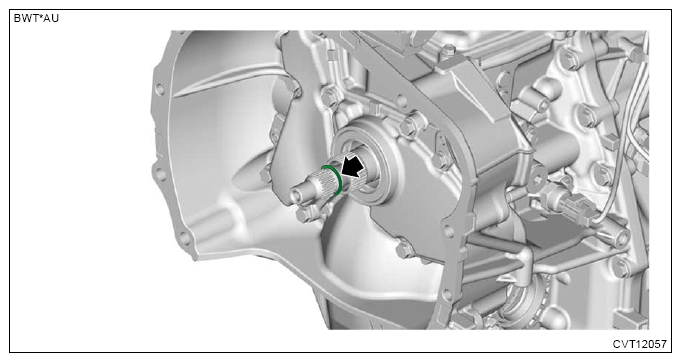

  4. Remove the O-rings.
G13603291Courtesy of SUBARU OF AMERICA, INC.
