Oil Pump Chain: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the torque converter. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 CROSSTREK)>TORQUE CONVERTER>REMOVAL .
  2. Remove the bolts which hold the oil pump chain cover.
    G13936029Courtesy of SUBARU OF AMERICA, INC.

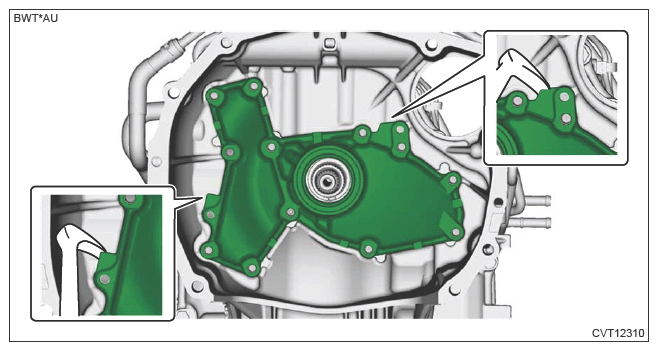

  3. Using a crowbar or similar wrapped with protective tape, remove the oil pump chain cover, driven sprocket and oil pump chain.
    G13936030Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the seal rings.
    G13936031Courtesy of SUBARU OF AMERICA, INC.

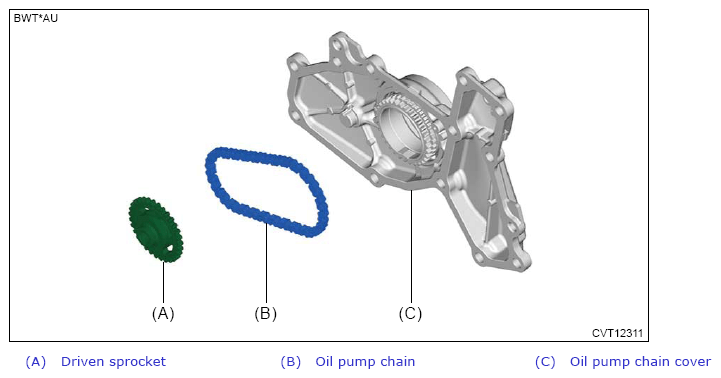

  5. Remove the driven sprocket and oil pump chain.
    CAUTION:

    If the ball bearing is removed from the driven sprocket, replace the driven sprocket with a new part.

    NOTE:

    The driven sprocket is a non-disassembly part.

    G13936032Courtesy of SUBARU OF AMERICA, INC.

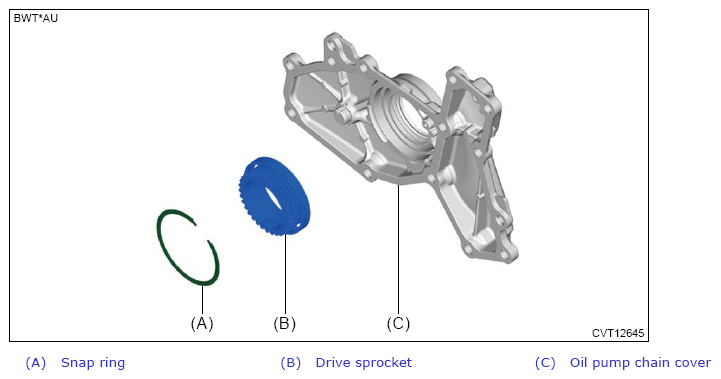

  6. Remove the snap ring and remove the drive sprocket.
    G13936033Courtesy of SUBARU OF AMERICA, INC.

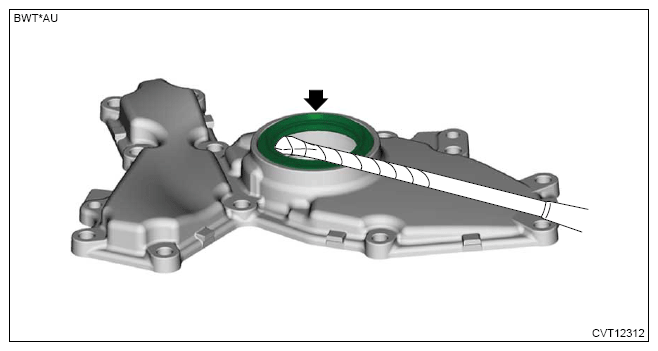

  7. Remove the oil seal using a flat tip screwdriver wrapped with protection tape.
    G13936034Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the liquid gasket from the oil pump chain cover and the converter case.
