Transmission Control Device: Removal

WARNING: This page is about a different car, the 2021 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transmission assembly from the vehicle. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 IMPREZA)>AUTOMATIC TRANSMISSION ASSEMBLY>REMOVAL .
  2. Remove the inhibitor switch. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 IMPREZA)>INHIBITOR SWITCH>REMOVAL .
  3. Remove the oil pan and oil strainer. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 IMPREZA)>OIL PAN AND STRAINER>REMOVAL .
  4. Shift the manual plate to "N" range, and remove the spring pin.
    NOTE: Prevent the spring pin from dropping in the transmission using paper towel etc.
    G09477983Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the detent spring.
    G09477984Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the bolt, and remove the shifter arm shaft.
    NOTE: Do not damage the lip of oil seal press-fitted in the case.
    G09477985Courtesy of SUBARU OF AMERICA, INC.

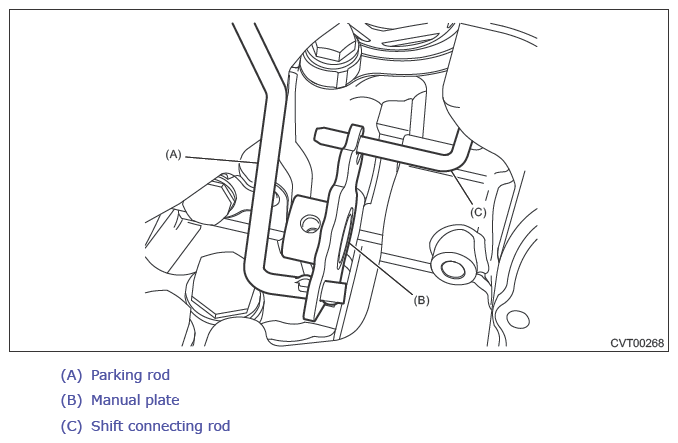

  7. Remove the manual plate from the shifter arm shaft, and remove the shift connecting rod of the manual valve.
    G13936782Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the manual plate and parking rod.
  9. Remove the manual valve.
    G09477987Courtesy of SUBARU OF AMERICA, INC.
  10. Remove the extension case. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 IMPREZA)>EXTENSION CASE>REMOVAL .
  11. Remove the parking support.
    G08317948Courtesy of SUBARU OF AMERICA, INC.
