Reduction Driven Gear: Installation

WARNING: This page is about a different car, the 2021 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the reduction driven gear assembly and spacer oil.

    Tightening torque:

    17 N.m (1.7 kgf-m, 12.5 ft-lb)

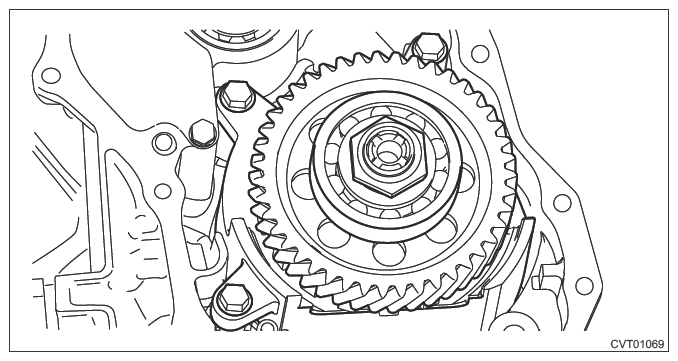

    G13936768Courtesy of SUBARU OF AMERICA, INC.
  2. Select the transfer drive gear shim. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 IMPREZA)>REDUCTION DRIVE GEAR>ADJUSTMENT .
  3. Install the parking pawl. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 IMPREZA)>PARKING PAWL>INSTALLATION .
  4. Attach the selected transfer drive gear shim to extension case with vaseline.
  5. Install the transfer driven gear assembly. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 IMPREZA)>TRANSFER DRIVEN GEAR>INSTALLATION .
  6. Install the transfer clutch assembly. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 IMPREZA)>TRANSFER CLUTCH>INSTALLATION .
  7. Install the extension case. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 IMPREZA)>EXTENSION CASE>INSTALLATION .
  8. Install the transmission assembly to the vehicle. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 IMPREZA)>AUTOMATIC TRANSMISSION ASSEMBLY>INSTALLATION .
