Idler Pulley

NOTE: The idler pulley is equipped on the 2.5 L model.
  1. Remove the V-belts. Ref. to MECHANICAL (H4DO (EXCEPT FOR HEV))>V-BELT>REMOVAL>GASOLINE ENGINE MODEL>V-BELT .

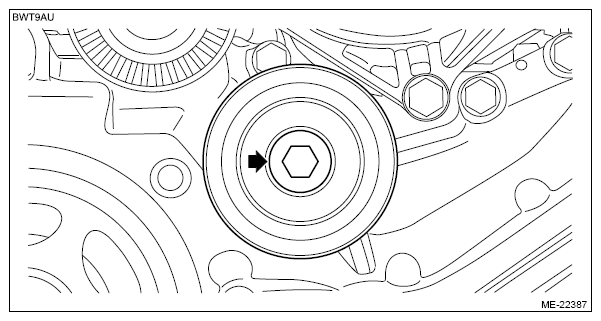

  2. Remove the idler pulley.
    G13618882Courtesy of SUBARU OF AMERICA, INC.
