Gasoline Engine Model: V-Belt

  1. When working on the vehicle
    NOTE: When working on the vehicle, perform the following steps also.
    1. Remove the V-belt covers.
    G12391348Courtesy of SUBARU OF AMERICA, INC.
  2. Attach the tool to the V-belt tensioner assembly, and rotate the tool clockwise to loosen and remove the V-belt.

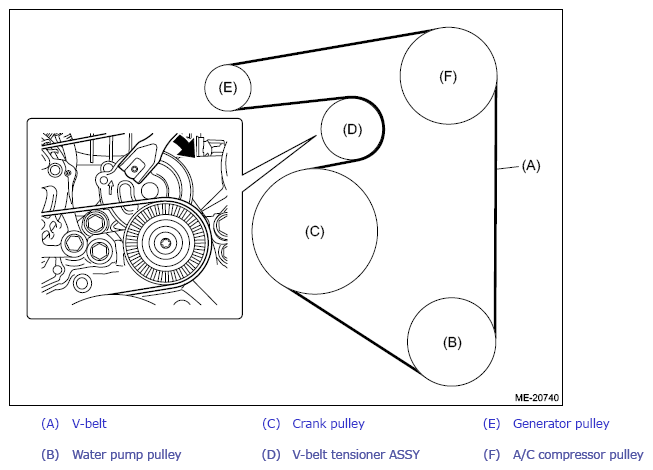

    • 2.0 L model
      G13876047Courtesy of SUBARU OF AMERICA, INC.

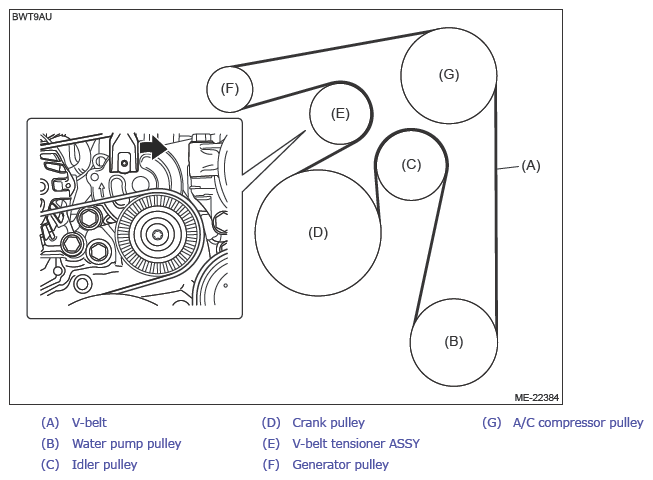

    • 2.5 L model
      G13876048Courtesy of SUBARU OF AMERICA, INC.
