Rear Quarter Glass: Removal

CAUTION: Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM"  . Ref. to AIRBAG SYSTEM>General Description>CAUTION .
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the third-row seats. Ref. to SEATS>Third Seat>REMOVAL .
  3. Remove the trim panel assembly apron, trim panel assembly C pillar and trim panel assembly D pillar. Ref. to EXTERIOR/INTERIOR TRIM>Rear Quarter Trim>REMOVAL .

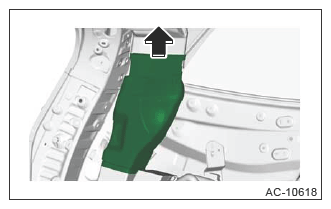

  4. Remove the duct rear D-pillar.
    G13200505Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the glass rear quarter in the same procedure as for the glass windshield. Ref. to GLASS/WINDOWS/MIRRORS>Windshield Glass>REMOVAL .
