Nozzle Wiper Arm Washer & Hose

CAUTION: Do not remove the wiper washer nozzle from the wiper arm assembly.
If nozzle replacement is required, replace the wiper arm assembly as a unit.
  1. Remove the hose wiper arm washer.

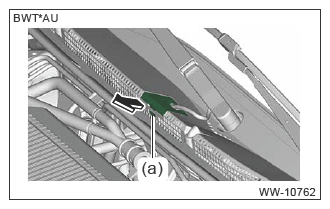

    1. Press the claw (a) and remove the cover joint from the cowl panel assembly.
      G13622910Courtesy of SUBARU OF AMERICA, INC.
    2. Remove the hose wiper arm washer.
  2. Remove the arm assembly windshield wiper. Refer to WIPER AND WASHER SYSTEMS>Front Wiper Arm>REMOVAL .
