Front Wiper Arm: Removal

CAUTION: When standing up the wiper arm assembly, always hold the arm portion. Holding the blade portion may cause the blade deformation.

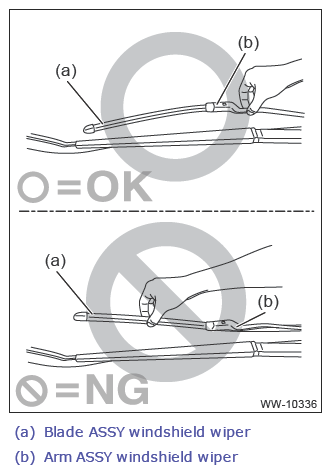

G13622909Courtesy of SUBARU OF AMERICA, INC.
NOTE: When standing up the wiper arm assembly, perform the driver's side first in order to prevent the arms from interfering with each other.
  1. Remove the cover windshield wiper arm.
  2. Remove the arm assembly windshield wiper.
    1. Press the claw (a) and remove the cover joint from the cowl panel assembly.
      G13622910Courtesy of SUBARU OF AMERICA, INC.
    2. Disconnect the hose wiper arm washer from the joint washer hose.
    3. Remove the nuts, and remove the arm assembly windshield wiper.

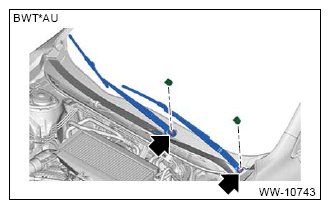

      G13622911Courtesy of SUBARU OF AMERICA, INC.
    4. Put alignment marks (a) at two places and disconnect the hose from the nozzle.
      CAUTION: Do not remove the wiper washer nozzle from the wiper arm assembly.
      If nozzle replacement is required, replace the wiper arm assembly as a unit.

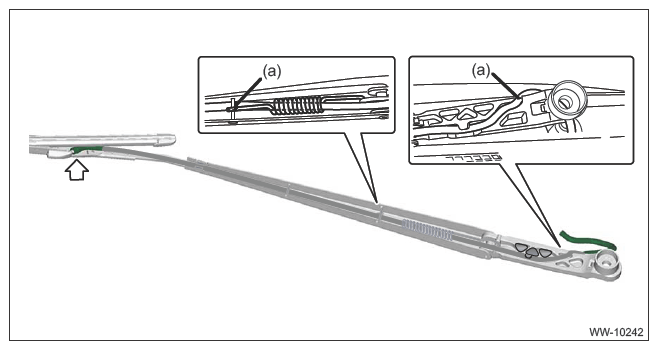

      G11246052Courtesy of SUBARU OF AMERICA, INC.
    5. Pull out the hose from the arm assembly windshield wiper assistor.
