Front Bumper: Disassembly

  1. Remove the front grille assembly.
    1. Remove the screws on the back side.
    2. Release the claws, and remove the front grille assembly.
      • Impreza model

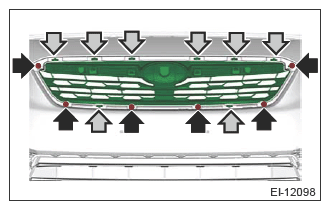

        G13606949Courtesy of SUBARU OF AMERICA, INC.

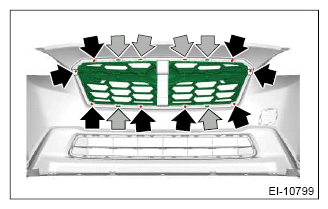

      • Crosstrek model
        G12399195Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the light assembly - fog or the light assembly - DRL. Refer to LIGHTING SYSTEM>FRONT FOG LIGHT ASSEMBLY>REMOVAL .
  3. Remove the screws and release the claws, and then remove the cover - fog light.
    • Impreza model
      • Model without fog light/model with fog light

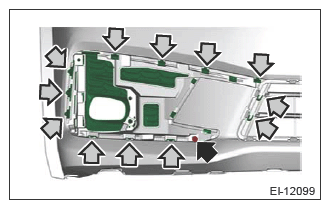

        G13606951Courtesy of SUBARU OF AMERICA, INC.

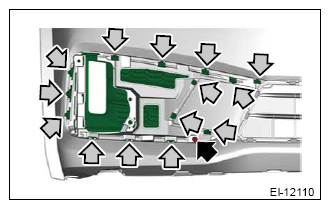

      • Model with DRL
        G13606952Courtesy of SUBARU OF AMERICA, INC.

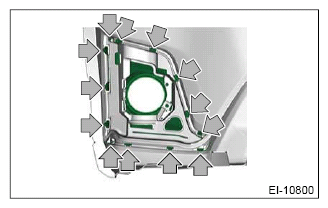

    • Crosstrek model
      G12399197Courtesy of SUBARU OF AMERICA, INC.

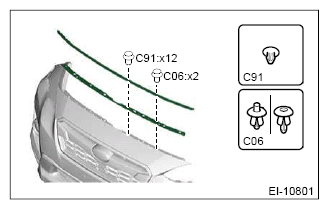

  4. Remove the clips, and remove the sealing bumper - front and the plate UPR - front.
    G12399198Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the clips, and remove the energy absorber LWR - front.
    • Impreza model

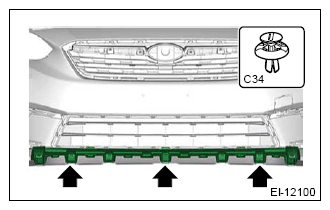

      G13606955Courtesy of SUBARU OF AMERICA, INC.
    • Crosstrek model (except for hybrid)

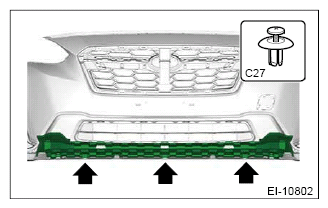

      G12399200Courtesy of SUBARU OF AMERICA, INC.
    • Crosstrek hybrid model

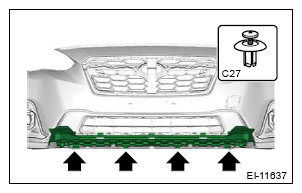

      G13235279Courtesy of SUBARU OF AMERICA, INC.
  6. Release the claws, and then remove the cover intake - front.
    • Impreza model

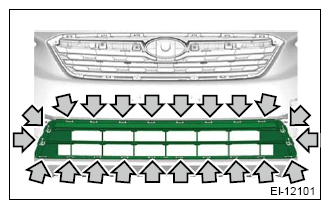

      G13606958Courtesy of SUBARU OF AMERICA, INC.
    • Crosstrek model

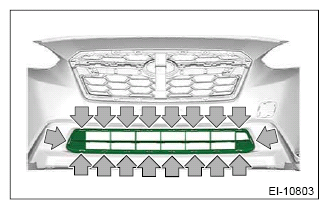

      G12399202Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the clips, and remove the bumper guard front. (Hybrid model)

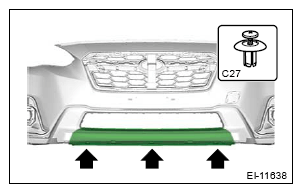

    G13235282Courtesy of SUBARU OF AMERICA, INC.
