Front Fog Light Assembly: Removal

  1. Disconnect the ground terminal from 12V engine restart battery sensor. Refer to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
    NOTE: For the hybrid model, disconnect the battery negative terminal.
  2. Lift up the vehicle.
  3. Remove the under cover - front. Refer to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>REMOVAL .
  4. Turn over the mud guard - front.
    1. Remove the clip.
    2. Remove the screws, and turn over the mud guard - front.

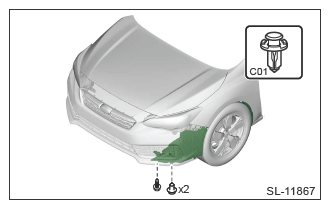

      G13605424Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the fog light assembly - front.
    1. Disconnect the connector.
    2. Remove the bolt and clip.
    3. Remove the guides, then remove the fog light assembly - front.

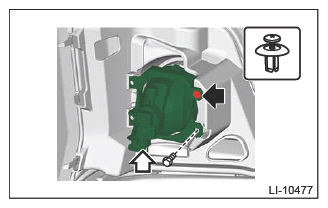

      G12398593Courtesy of SUBARU OF AMERICA, INC.
      NOTE: Perform the same procedures for LED models.
