Resolver Sensor Harness

WARNING: This page is about a different variant/trim than selected.
WARNING: The hybrid system includes a high voltage circuit. Mishandling could cause accidents such as electric shock or leak. Always check "WARNING (HYBRID SYSTEM)" and perform the proper operation. Ref. to PRECAUTION/WARNING>Warning (HYBRID SYSTEM) .

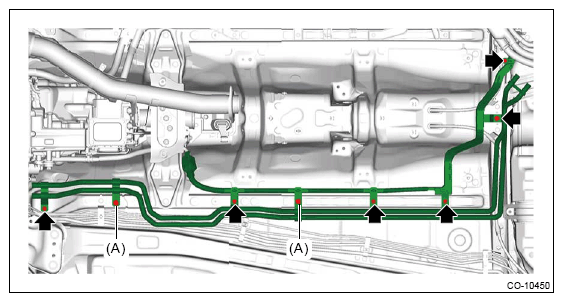

  1. Install the bolt and clip (A) shown in the figure, and install the resolver sensor harness.

    Tightening torque:

    8 N.m (0.8 kgf-m, 5.9 ft-lb)

    G13231333Courtesy of SUBARU OF AMERICA, INC.

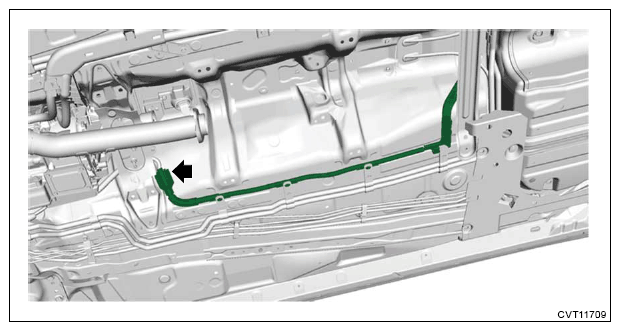

  2. Connect the resolver sensor harness to the inhibitor harness connector.
    G13233232Courtesy of SUBARU OF AMERICA, INC.

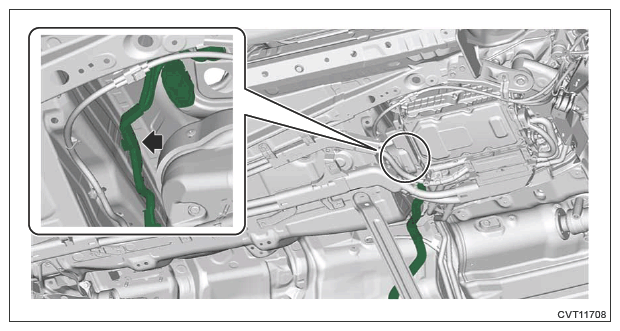

  3. Install the cord cover clips.
    G13233231Courtesy of SUBARU OF AMERICA, INC.
  4. Install the inverter with converter assembly. Ref. to HYBRID ELECTRIC VEHICLE>INVERTER AND CONVERTER ASSEMBLY>INSTALLATION .
  5. Install the floor under protector RH. Ref. to EXTERIOR/INTERIOR TRIM>FLOOR UNDER PROTECTOR>INSTALLATION .
  6. Install the propeller shaft. Ref. to DRIVE SHAFT SYSTEM>PROPELLER SHAFT>INSTALLATION .
  7. Install the service disconnect plug. Ref. to HYBRID ELECTRIC VEHICLE>SERVICE PLUG>INSTALLATION .
  8. Connect the battery ground terminal. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
