Inhibitor Harness

WARNING: This page is about a different variant/trim than selected.
  1. Install the inhibitor harness onto the transmission body.

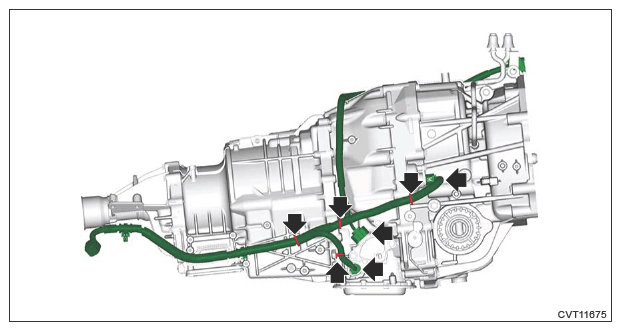

    1. Install the clips and connect the connectors to the sensor and inhibitor switch. (RH side)
      G13233230Courtesy of SUBARU OF AMERICA, INC.

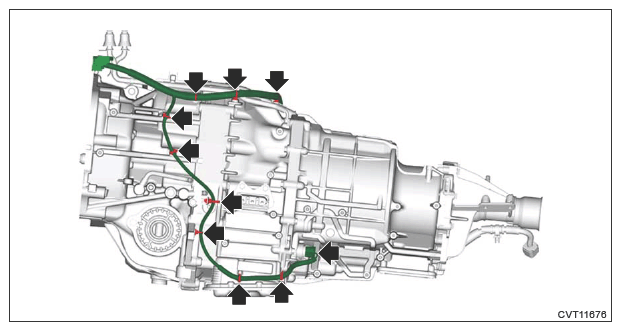

    2. Install the clips, and connect the connector to the sensor. (LH side)
    G13233229Courtesy of SUBARU OF AMERICA, INC.
  2. Install the transmission body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TH2A)>TRANSMISSION ASSEMBLY>INSTALLATION .
