Oil Pan: Removal

WARNING: This page is about a different variant/trim than selected.
CAUTION:
  • Vehicle components are extremely hot immediately after driving. Be wary of receiving burns from heated parts.
  • If any ATF adheres to the exhaust pipe, completely wipe it off to avoid emitting smoke and causing a fire.
  1. Drain the ATF. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TH2A)>AUTOMATIC TRANSMISSION FLUID>REPLACEMENT .

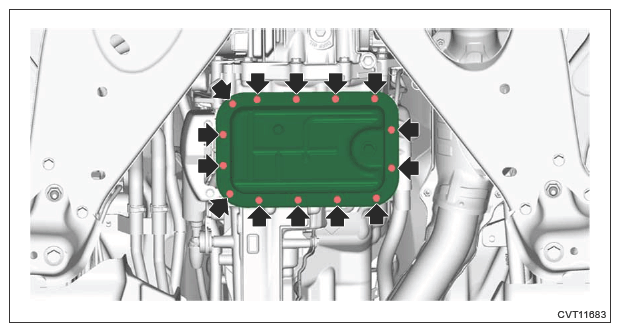

  2. Remove the bolts which hold the oil pan.
    G13233224Courtesy of SUBARU OF AMERICA, INC.
  3. Insert an oil pan seal cutter into the gap between oil pan and transmission case, and remove the oil pan.
    CAUTION:
    • Do not use the tools other than the oil pan seal cutter, in order to prevent damaging the oil pan and the transmission case.
    • Do not twist with excessive force. The oil pan may be deformed.

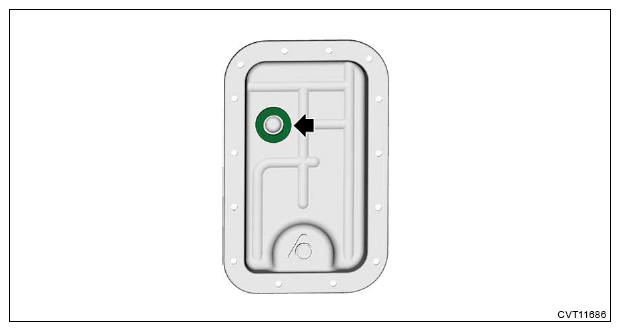

  4. Remove the magnet from the oil pan.
    NOTE: Remove the iron powder, etc. from the magnet.
    G13233225Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the liquid gasket from the oil pan and the transmission case.

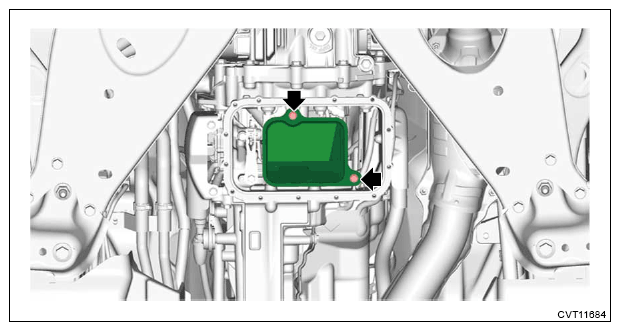

  6. Remove the oil strainer.
    NOTE: Perform this procedure only when required.
    G13233226Courtesy of SUBARU OF AMERICA, INC.

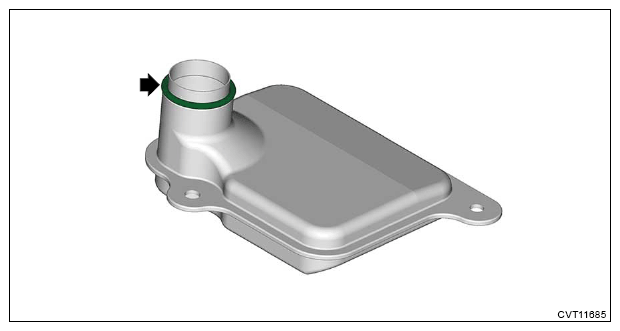

  7. Remove the O-ring from oil strainer.
    G13233227Courtesy of SUBARU OF AMERICA, INC.
