Section 9 (CVT Transaxle (Th2A)): Flywheel: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the transmission body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TH2A)>TRANSMISSION ASSEMBLY>REMOVAL .
  2. Remove the damper (with torque limiter).
    G13233271Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the flywheel and crankshaft position sensor plate.
    1. Attach the ST.

      Preparation tool:

      ST: CRANKSHAFT STOPPER (498497100)

    2. Remove the bolt securing the flywheel.

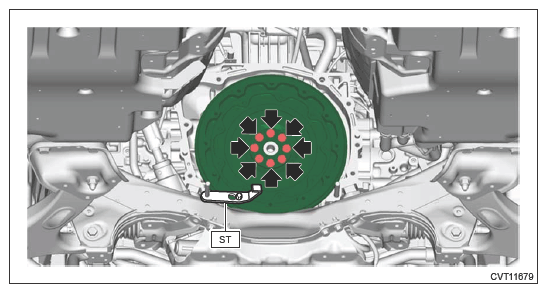

      G13233272Courtesy of SUBARU OF AMERICA, INC.
    3. Remove the flywheel and crankshaft position sensor plate.

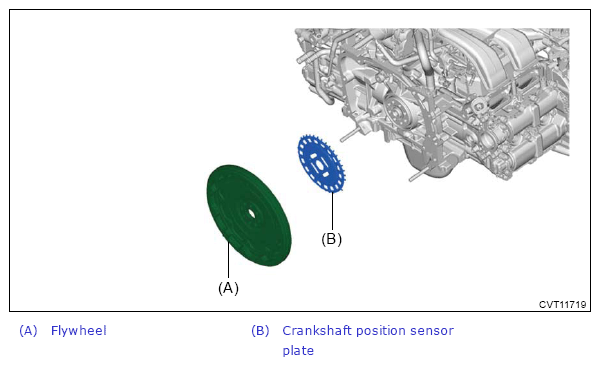

      G13604104Courtesy of SUBARU OF AMERICA, INC.
