CVTF Cooler (Air Cooling): Removal

WARNING: This page is about a different variant/trim than selected.
CAUTION:
  • Vehicle components are extremely hot immediately after driving. Be wary of receiving burns from heated parts.
  • If ATF spills over the engine, completely wipe it off to avoid emission of smoke and causing a fire.
  1. Disconnect the ground terminal from battery. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the bumper face - front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT BUMPER>REMOVAL>BUMPER FACE .

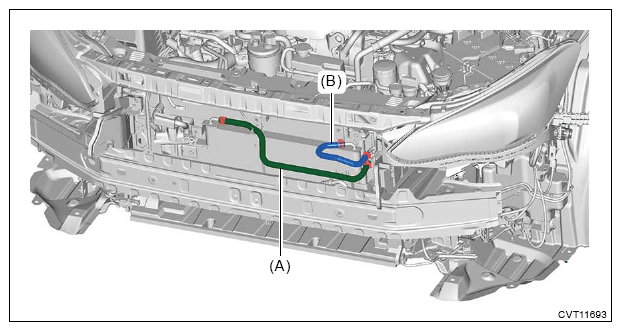

  3. Remove the CVTF cooler (air cool) inlet hose (A) and the CVTF cooler (air cool) outlet hose (B).
    G13233254Courtesy of SUBARU OF AMERICA, INC.

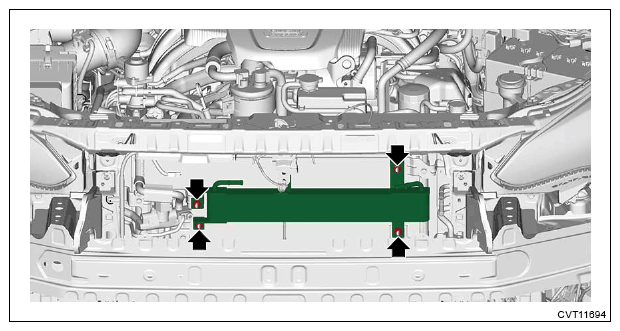

  4. Remove the CVTF cooler (air cool).
    G13233265Courtesy of SUBARU OF AMERICA, INC.
