Bumper Face

  1. Disconnect the ground terminal from 12V engine restart battery sensor. Refer to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
    NOTE: For the hybrid model, disconnect the battery negative terminal.
  2. Remove the bumper face - front.
    1. Remove the bolt and clip.
      G12399184Courtesy of SUBARU OF AMERICA, INC.

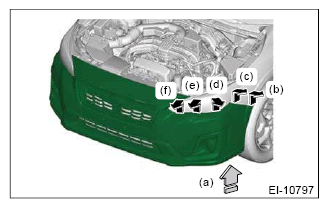

    2. While pushing up the lower side (a) of the bumper face - front, release the engagement in the order from (b) to (f).
      CAUTION: Do not pull forcibly. It may damage the flange section on the bumper face - front side when it comes off from the claws of the bracket - front bumper.
      G12399185Courtesy of SUBARU OF AMERICA, INC.
    3. Disconnect the connector from the light assembly - fog or the light assembly - DRL.
      NOTE: Detach the opposite side in the same manner.

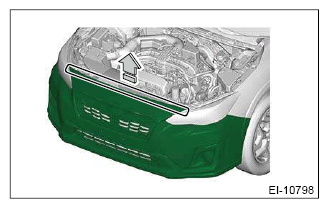

    4. Remove the bumper face while pulling up the center part of the bumper.
      G12399186Courtesy of SUBARU OF AMERICA, INC.
