Charging Inlet Door

WARNING: This page is about a different variant/trim than selected.
CAUTION: Airbag system satellite safing sensor is located under the front center of the rear seat cushion. Be careful not to apply strong impact to the sensor when working with the rear seat cushion removed.
  1. Disconnect the ground terminal from battery and wait for at least 60 seconds before starting work. Refer to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the rear seat cushion assembly. Refer to SEATS>REAR SEAT>REMOVAL .
  3. Remove the trim panel - rear apron LH. Refer to EXTERIOR/INTERIOR TRIM>REAR QUARTER TRIM>REMOVAL .
  4. Remove the duct - battery cooling blower LH. Refer to HYBRID ELECTRIC VEHICLE>HIGH VOLTAGE BATTERY COOLING SYSTEM>REMOVAL>FRONT DUCT .
  5. Remove the battery cooling blower assembly LH. Refer to HYBRID ELECTRIC VEHICLE>HIGH VOLTAGE BATTERY COOLING SYSTEM>REMOVAL>COOLING BLOWER .
  6. Remove the duct assembly - cooling out LH. Refer to HYBRID ELECTRIC VEHICLE>HIGH VOLTAGE BATTERY COOLING SYSTEM>REMOVAL>REAR DUCT .
  7. Remove the charge lid lock with motor assembly.

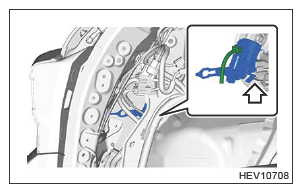

    1. Disconnect the charging inlet door cable (white).
    2. Disconnect the connector and claw, and remove the charge lid lock with motor assembly.
      G13235743Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the flap - outer.

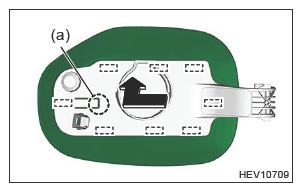

    1. Release the claw (a), and remove the flap - outer in the direction of the arrow.
      G13235744Courtesy of SUBARU OF AMERICA, INC.
  9. Remove the saucer SUB-assembly.

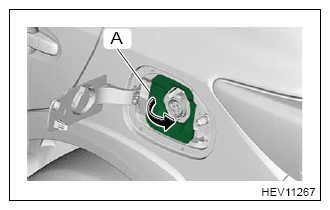

    1. Release the claw at part A on the front of the vehicle, then remove the saucer - cover.
      G13607537Courtesy of SUBARU OF AMERICA, INC.

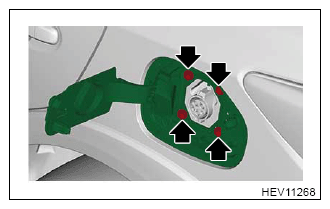

    2. Remove the bolt.
      G13607538Courtesy of SUBARU OF AMERICA, INC.
    3. Disconnect the connector.

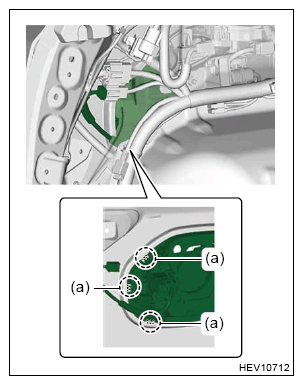

    4. Release the claw (a) from inside the vehicle.
      G13235747Courtesy of SUBARU OF AMERICA, INC.

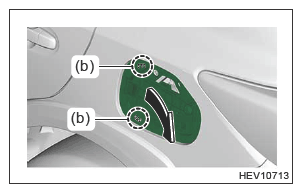

    5. Pull toward you while pulling the saucer - COMPL toward the rear of the vehicle to release claw (b).
      G13235748Courtesy of SUBARU OF AMERICA, INC.
    6. While closing the saucer - COMPL flap, remove the saucer SUB-assembly.
