Cooling Blower

WARNING: This page is about a different variant/trim than selected.
WARNING: The hybrid system includes a high voltage circuit. Mishandling could cause accidents such as electric shock or leak. Refer to PRECAUTION/WARNING>WARNING (HYBRID SYSTEM) .
CAUTION: Airbag system satellite safing sensor is located under the front center of the rear seat cushion. Be careful not to apply strong impact to the sensor when working with the rear seat cushion removed.
  1. Disconnect the ground terminal from battery and wait for at least 60 seconds before starting work. Refer to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the service disconnect plug. Refer to HYBRID ELECTRIC VEHICLE>SERVICE PLUG>REMOVAL .
  3. Remove the rear seat cushion assembly. Refer to SEATS>REAR SEAT>REMOVAL .
  4. Remove the trim panel - rear apron. Refer to EXTERIOR/INTERIOR TRIM>REAR QUARTER TRIM>REMOVAL .
  5. Remove the bar - floor front COMPL.
    1. Remove the bolts, and remove the bar - floor front COMPL.
      G13235544Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the cover - charger.
    WARNING: Be sure to wear insulated gloves.
    1. Remove the bolts, and then remove the cover - charger.
      G13235553Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the charger cooling blower.
    WARNING:
    • Be sure to wear insulated gloves.
    • Be sure to use an insulating sheet at locations other than the work location.

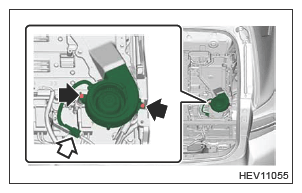

    1. Disconnect the connector, and remove the connector clip.
    2. Remove the bolts, and remove the charger cooling blower.
      G13235616Courtesy of SUBARU OF AMERICA, INC.
